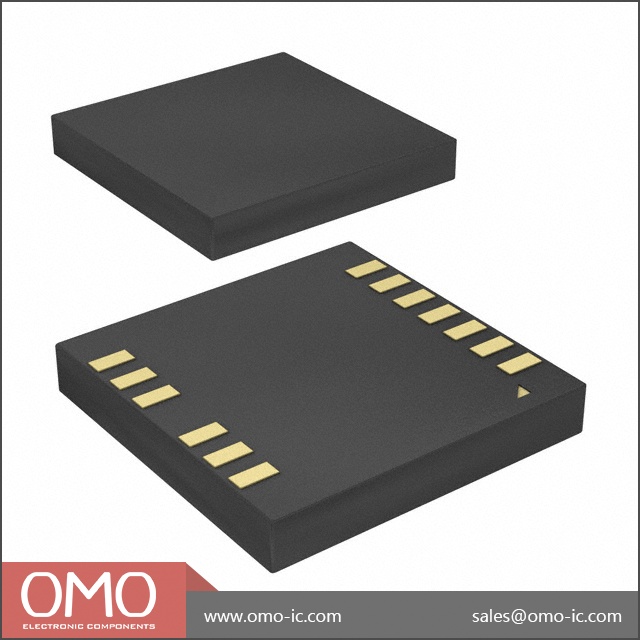

ADUM7223BCCZ

Mfr. #:: ADUM7223BCCZ
Manufacturer:: Analog Devices Inc.
Description:: Gate Drivers Isolated Precision Gate Drivr 4A Output
Lifecycle:: New from this manufacturer.
Datasheet:: ADUM7223BCCZ Datasheet
Delivery:: DHL FedEx Ups TNT EMS
Payment:: T/T Paypal Visa MoneyGram Western Union
ECAD Model:
More Information:: ADUM7223BCCZ more Information ADUM7223BCCZ Product Details

Product Attribute
Attribute Value

Manufacturer: Analog Devices Inc.

Product Category: Isolators - Gate Drivers

Series: iCouplerR

Product: Half-Bridge Drivers

Type: Isolated Precision

Packaging: Tray Alternate Packaging

Mounting-Style: SMD/SMT

Package-Case: LGA-13

Technology: Magnetic Coupling

Operating-Temperature: -40°C ~ 125°C

Mounting-Type: Surface Mount

Number-of-Channels: 2

Voltage-Supply: 4.5 V ~ 18 V

Supplier-Device-Package: 13-LGA (5x5)

Configuration: Non-Inverting

Number-of-Outputs: 2 Output

Current-Output-High-Low: -

Current-Peak-Output: 4A

Current-DC-Forward-If-Max: -

Voltage-Isolation: 2500Vrms

Approvals: -

Shutdown: Yes

Voltage-Forward-Vf-Typ: -

Rise-Fall-Time-Typ: 12ns, 12ns

Common-Mode-Transient-Immunity-Min: 50kV/μs

Propagation-Delay-tpLH-tpHL-Max: 62ns, 62ns

Pulse-Width-Distortion-Max: -

Maximum-Operating-Temperature: + 125 C

Minimum-Operating-Temperature: - 40 C

Output-Voltage: 7.5 V

Operating-Supply-Current: 1.4 mA

Output-Current: 4 A

Fall-Time: 12 ns

Rise-Time: 12 ns

Development-Kit: EVAL-ADuM7223EBZ

Supply-Voltage-Max: 5.5 V

Supply-Voltage-Min: 3 V

Number-of-Drivers: 2 Driver

Tags: ADUM722, ADUM72, ADUM7, ADUM, ADU

Service Guarantees

We guarantee 100% customer satisfaction.

Quality Guarantees

We provide 90-360 days warranty.

If the items you received were not in perfect quality, we would be responsible for your refund or replacement, but the items must be returned in their original condition.
Our experienced sales team and tech support team back our services to satisfy all our customers.

we buy and manage excess electronic components, including excess inventory identified for disposal.
Email us if you have excess stock to sell.

Email: info@omo-ic.com

Step1:
Vacuum Packaging with PL

Step2:
Anti-Static Bag

Step3:
Packaging Boxes

ADUM7223BCCZ Description

***et: Gate Driver, Isolated Half Bridge, 2-Ch, Output 4.0A/7.5V, 13-Pin LGA, Tray

***i-Key: DGTL ISO 2.5KV GATE DRIVER 13LGA

***Components: In a Pack of 2, Analog Devices ADUM7223BCCZ Dual High and Low Side MOSFET Power Driver, 4A 13-Pin, LGA

***ark: Isolated Precision Gate Drivr 4 A Output / TRAY

***p One Stop Japan: Digital Isolator CMOS 2-CH 1Mbps 13-Pin LGA Tray

***p One Stop Global: Digital Isolator CMOS 2-CH 1Mbps 13-Pin LGA T/R

***ical: Isolated Gate and Power Drivers

***hardson RFPD: GATE DRIVER IC

***log Devices: The ADuM7223 is a 4A isolated, half-bridge gate driver that employ Analog Devices, Inc.’s iCoupler® technology to provide independent and isolated high-side and low-side outputs. Combining high speed CMOS and monolithic transformer technology, these isolation components provide outstanding performance characteristics superior to alternatives such as the combination of pulse transformers and non-isolated gate drivers. By integrating the isolator and driver in a single package, propagation delay is a maximum of only 60 ns and the propagation skew from channel to channel is a maximum of only 7ns.The ADuM7223 provides two independent isolation channels. The ADuM7223 operates with an input supply ranging from 3.0 V to 5.5 V, providing compatibility with lower voltage systems. The outputs operate in a wide range from 4.5V to 18V with three output voltage versions available. The 5 x 5 mm, LGA package provides 2500 VDC PEAK operating voltage from input to output and from output to output. In comparison to gate drivers employing high voltage level translation methodologies, these gate drivers offer the benefit of true, galvanic isolation between the input and each output. As a result, these gate drivers provide reliable control over the switching characteristics of IGBT/MOSFET configurations over a wide range of positive or negative switching voltages. Applications Switching power supplies Isolated IGBT/MOSFET gate drives Industrial inverters

ADUM7223BCCZ More Information

ADuM7223 Isolated Precision Half-Bridge Driver: Analog Devices' ADuM7223 features 4.0A isolated, half-bridge gate drivers designed using Analog Devices, Inc., iCoupler® technology to provide independent and isolated high-side and low-side outputs. Combining high-speed CMOS and monolithic transformer technology, these isolation components offer outstanding performance characteristics superior to alternatives such as the combination of pulse transformers and non-isolated gate drivers.

Lithium Ion Battery Formation and Test Solutions: Analog Devices Lithium Ion Battery Formation and Test Solutions offer a small, environmental friendly system for testing and formation rechargeable battery cells and packs. The offering uses a PWM controller to provide the charging energy. With these solutions, designers can direct discharging energy to other cells or send the energy back to the grid to minimize energy usage.Learn More

Analog Devices Isolation - All

ADI Isolation - Power Conversion

Power Management ADI SLP

Market price

Part #	Mfg.	Description	Stock	Price
ADUM7223BCCZ-RL7 DISTI # V72:2272_06224129	Analog Devices Inc	Digital Isolator CMOS 2-CH 1Mbps 13-Pin LGA T/R RoHS: Compliant	800	500:$2.4430 250:$2.7030 100:$2.9670 25:$3.2310 10:$3.5500 1:$3.9280
ADUM7223BCCZ DISTI # V99:2348_06224127	Analog Devices Inc	Digital Isolator CMOS 2-CH 1Mbps 13-Pin LGA Tray RoHS: Compliant	490	2500:$2.1780 1000:$2.2730 500:$2.4450 250:$2.8200 100:$3.0670 50:$3.1080 25:$3.3170 10:$3.6140 1:$3.9670
ADUM7223BCCZ DISTI # ADUM7223BCCZ-ND	Analog Devices Inc	DGTL ISO 2.5KV GATE DRIVER 13LGA RoHS: Compliant Min Qty: 1 Container: Tray	1288In Stock	1470:$2.5200 980:$2.9880 490:$3.3300 10:$4.2840 1:$4.7700
ADUM7223BCCZ-RL7 DISTI # ADUM7223BCCZ-RL7TR-ND	Analog Devices Inc	DGTL ISO 2.5KV GATE DRIVER 13LGA RoHS: Compliant Min Qty: 1000 Container: Tape & Reel (TR)	Temporarily Out of Stock	1000:$2.5200
ADUM7223BCCZ-RL7 DISTI # 26755894	Analog Devices Inc	Digital Isolator CMOS 2-CH 1Mbps 13-Pin LGA T/R RoHS: Compliant	800	500:$2.4430 250:$2.7030 100:$2.9670 25:$3.2310 10:$3.5500 3:$3.9280
ADUM7223BCCZ DISTI # 26721430	Analog Devices Inc	Digital Isolator CMOS 2-CH 1Mbps 13-Pin LGA Tray RoHS: Compliant	490	250:$2.8200 100:$3.0670 50:$3.1080 25:$3.3170 10:$3.6140 3:$3.9670
ADUM7223BCCZ DISTI # 30213388	Analog Devices Inc	Digital Isolator CMOS 2-CH 1Mbps 13-Pin LGA Tray RoHS: Compliant	138	18:$3.0000
ADUM7223BCCZ DISTI # 584-ADUM7223BCCZ	Analog Devices Inc	Gate Drivers Isolated Precision Gate Drivr 4A Output RoHS: Compliant	265	1:$4.5400 10:$4.0500 25:$3.6500 50:$3.4800 100:$3.3300 250:$3.0100 500:$2.7000 1000:$2.3300 2500:$2.2100
ADUM7223BCCZ-RL7 DISTI # 584-ADUM7223BCCZ-RL7	Analog Devices Inc	Gate Drivers Isolated Precision Gate Drivr 4A Output RoHS: Compliant	470	1:$4.5400 10:$4.0500 25:$3.6500 50:$3.4800 100:$3.3300 250:$3.0100 500:$2.7000 1000:$2.3300 2000:$2.2100
ADUM7223BCCZ	Analog Devices Inc	Half Bridge Based Peripheral Driver RoHS: Compliant	220	1000:$3.0400 500:$3.2000 100:$3.3400 25:$3.4800 1:$3.7500
ADUM7223BCCZ DISTI # 8224406P	Analog Devices Inc	DIGITAL ISOLATOR CMOS 2-CH 1MBPS, BX	68	6:£3.2750 24:£3.0400 122:£2.8000 246:£2.5650
ADUM7223BCCZ DISTI # ADUM7223BCCZ	Analog Devices Inc	GATE DRIVER IC RoHS: Compliant	138	1:$2.8300 10:$2.7000 25:$2.5900 100:$2.4500 500:$2.4200 1000:$2.3600
ADUM7223BCCZ-RL7 DISTI # ADUM7223BCCZRL7	Analog Devices Inc	GATE DRIVER IC RoHS: Compliant	0	1000:$2.3600
ADUM7223BCCZ DISTI # C1S103101230993	Analog Devices Inc	Digital Isolator CMOS 2-CH 1Mbps 13-Pin LGA Tray RoHS: Compliant	138	100:$2.6500 50:$2.6800 10:$3.1500 1:$4.1700
