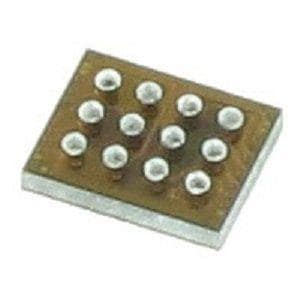

MAX5815AWC+T

Mfr. #:: MAX5815AWC+T
Manufacturer:: Maxim Integrated
Description:: Digital to Analog Converters - DAC 4Ch 12Bit Voltage DAC with I2C
Lifecycle:: New from this manufacturer.
Datasheet:: MAX5815AWC+T Datasheet
Delivery:: DHL FedEx Ups TNT EMS
Payment:: T/T Paypal Visa MoneyGram Western Union
HTML Datasheet:: MAX5815AWC+T Datasheet MAX5815AWC+T Datasheet (P4-P6)MAX5815AWC+T Datasheet (P7)
ECAD Model:
More Information:: MAX5815AWC+T more Information

Product Attribute
Attribute Value

Manufacturer:: Maxim Integrated

Product Category:: Digital to Analog Converters - DAC

RoHS:: Y

Series:: MAX5815

Resolution:: 12 bit

Number of Channels:: 4 Channel

Settling Time:: 4.5 us

Interface Type:: Serial, 2-Wire, I2C

Reference Type:: External, Internal

Supply Voltage - Max:: 5.5 V

Supply Voltage - Min:: 2.7 V

Minimum Operating Temperature:: - 40 C

Maximum Operating Temperature:: + 125 C

Mounting Style:: SMD/SMT

Package / Case:: WLP-12

Packaging:: Reel

Number of Converters:: 4 Converter

Output Type:: Voltage Buffered

Brand:: Maxim Integrated

DNL - Differential Nonlinearity:: 1 LSB

Gain Error:: 0.5 %FS

INL - Integral Nonlinearity:: 1 LSB

Operating Supply Current:: 900 uA

Pd - Power Dissipation:: 1288 mW

Product Type:: DACs - Digital to Analog Converters

Factory Pack Quantity:: 2500

Subcategory:: Data Converter ICs

Part # Aliases:: MAX5815

Tags: MAX5815A, MAX5815, MAX581, MAX58, MAX5, MAX

Service Guarantees

We guarantee 100% customer satisfaction.

Quality Guarantees

We provide 90-360 days warranty.

If the items you received were not in perfect quality, we would be responsible for your refund or replacement, but the items must be returned in their original condition.
Our experienced sales team and tech support team back our services to satisfy all our customers.

we buy and manage excess electronic components, including excess inventory identified for disposal.
Email us if you have excess stock to sell.

Email: info@omo-ic.com

Step1:
Vacuum Packaging with PL

Step2:
Anti-Static Bag

Step3:
Packaging Boxes

MAX5815AWC+T Description

***ure Electronics: 12-Bit, Four Channel, Voltage DAC with I2C Interface

***et: DAC 4-CH 12-bit 12-Pin WLP T/R

***i-Key: IC DAC 12BIT BUFFERED WLP

MAX5815AWC+T More Information

MAX5813-15 Quad-Channel 8/10/12-bit DACs: Maxim MAX5813 / MAX5814 / MAX5815 4-channel, low-power, 8- / 10- / 12-bit, voltage-output digital-to-analog converters (DACs) include output buffers and an internal reference that is selectable to be 2.048V, 2.5V, or 4.096V. These Maxim DACs accept a wide supply voltage range of 2.7V to 5.5V with extremely low power (3mW) consumption to accommodate most low-voltage applications. A precision external reference input allows rail-to-rail operation and presents a 100kΩ (typ) load to an external reference. MAX5813 / MAX5814 / MAX5815 have an I²C-compatible, 2-wire interface that operates at clock rates up to 400kHz. The DAC output is buffered and has a low supply current of less than 250µA per channel and a low offset error of ±0.5mV (typical). On power-up, the DAC outputs are reset to zero, providing additional safety for applications that drive valves or other transducers which need to be off on power-up. The internal reference is initially powered down to allow use of an external reference. Theses Maxim devices also allow simultaneous output updates using software LOAD commands or the hardware load DAC logic input (active-low LDAC). MAX5813 / MAX5814 / MAX5815 are ideal for use in a variety of applications, including programmable voltage and current sources, gain and offset adjustment, automatic tuning and optical control, and more.

MAX5815 12-bit Buffered Output DAC: Maxim Integrated MAX5815 12-bit, 4-channel buffered output digital-to-analog converter (DAC) features an internal reference that is selectable to be 2.048V, 2.500V, or 4.096V. Maxim Integrated MAX5815 DAC accepts a wide supply voltage range of 2.7V to 5.5V with extremely low power (3mW) consumption to accommodate most low-voltage applications. A precision external reference input allows rail-to-rail operation and presents a 100kΩ (typ) load to an external reference. MAX5815 has an I²C-compatible, 2-wire interface that operates at clock rates up to 400kHz. The DAC output is buffered and has a low supply current of less than 250FA per channel and a low offset error of ±0.5mV (typ). MAX5815 DAC is ideal for use in a variety of applications, including programmable voltage and current sources as well as gain and offset adjustment.Learn More
