CDCE421ARGET

Mfr. #:: CDCE421ARGET
Description:: Clock Synthesizer / Jitter Cleaner Fully Int Lo-Jitter Crystal Osc Cl Gen
Lifecycle:: New from this manufacturer.
Datasheet:: CDCE421ARGET Datasheet
Delivery:: DHL FedEx Ups TNT EMS
Payment:: T/T Paypal Visa MoneyGram Western Union
ECAD Model:
More Information:: CDCE421ARGET more Information CDCE421ARGET Product Details

Product Attribute
Attribute Value

Manufacturer:: Texas Instruments

Product Category:: Clock Synthesizer / Jitter Cleaner

RoHS:: Y

Series:: CDCE421A

Number of Outputs:: 1 Output

Output Level:: LVDS, LVPECL

Max Output Freq:: 1100 MHz

Input Level:: LVCMOS, Crystal

Maximum Input Frequency:: 38.33 MHz

Supply Voltage - Max:: 3.6 V

Supply Voltage - Min:: 3 V

Minimum Operating Temperature:: - 40 C

Maximum Operating Temperature:: + 85 C

Mounting Style:: SMD/SMT

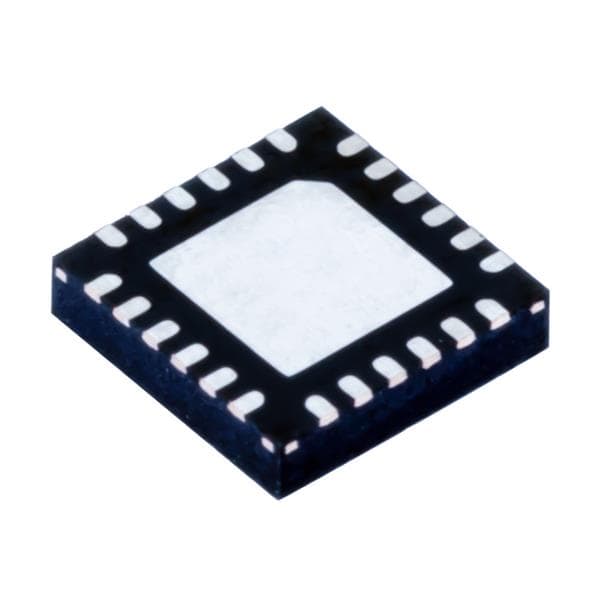

Package / Case:: VQFN-24

Packaging:: Reel

Features:: Design Tool Available

Brand:: Texas Instruments

Development Kit:: CDCE421AEVM

Moisture Sensitive:: Yes

Operating Supply Current:: 91 mA

Operating Supply Voltage:: 3.3 V

Product Type:: Clock Synthesizer / Jitter Cleaner

Factory Pack Quantity:: 250

Subcategory:: Clock & Timer ICs

Unit Weight:: 0.001601 oz

Tags: CDCE421AR, CDCE421A, CDCE42, CDCE4, CDCE, CDC

Service Guarantees

We guarantee 100% customer satisfaction.

Quality Guarantees

We provide 90-360 days warranty.

If the items you received were not in perfect quality, we would be responsible for your refund or replacement, but the items must be returned in their original condition.
Our experienced sales team and tech support team back our services to satisfy all our customers.

we buy and manage excess electronic components, including excess inventory identified for disposal.
Email us if you have excess stock to sell.

Email: info@omo-ic.com

Step1:
Vacuum Packaging with PL

Step2:
Anti-Static Bag

Step3:
Packaging Boxes

CDCE421ARGET Description

***p One Stop Global: Clock Generator 27.35MHz to 38.33MHz Input 1175MHz Output 24-Pin VQFN EP T/R

***as Instruments: Fully Integrated Wide Range Low-Jitter Crystal Oscillator Clock Generator 24-VQFN -40 to 85

***ical: Clock Generator 27.35MHz to 38.33MHz-IN 1175MHz-OUT 24-Pin VQFN EP T/R

***et Europe: PLL Frequency Synthesizer Single 24-Pin VQFN EP T/R

***C: PLL Frequency Synthesizer Single 24-Pin VQFN

***i-Key: IC CRYSTAL OSCILLATR CLCK 24VQFN

***AS INST: The CDCE421A is a high-performance, low phase noise clock generator. It has two fully-integrated, low-noise, LC-based voltage-controlled oscillators (VCOs) that operate in the 1.750-GHz to 2.350-GHz frequency range. It also features an integrated crystal oscillator that operates in conjunction with an external AT-cut crystal to produce a stable frequency reference for the phase-locked loop (PLL) based frequency synthesizer.

***TEXAS: The output frequency (fOUT) is proportional to the frequency of the input crystal (fXTAL). The prescaler divider, feedback divider, output divider, and VCO selection set the output frequency with respect to fXTAL.

***ASI: In the CDCE421A, the feedback divider is set automatically with respect to the prescaler setting. The product of the prescaler and the feedback divider should be between 60 and 64 as shown in to maintain a stable control loop.

***AS INSTRUMENTS INC: The CDCE421A supports one differential LVDS clock output or one differential LVPECL output. All device settings are programmable through a proprietary simple serial interface (SSI).

***AS INST: The device operates in 3.3-V supply environment for both LVPECL and LVDS outputs and is characterized for operation from -40°C to +85°C. The CDCE421A is available in a QFN-24 4-mm × 4-mm package.

***AS INST: The CDCE421A provides several device enhancements to the CDCE421.

Market price

Part #	Description	Stock	Price
CDCE421ARGET DISTI # V72:2272_07248233	Clock Generator 27.35MHz to 38.33MHz Input 1175MHz Output 24-Pin VQFN EP T/R RoHS: Compliant	183	75000:$9.2970 30000:$9.3440 15000:$9.3460 6000:$9.3480 3000:$9.3500 1000:$9.3520 500:$10.1080 250:$10.6600 100:$10.8630 50:$12.5950 25:$12.6050 10:$13.2630 1:$14.3610
CDCE421ARGET DISTI # 296-24489-1-ND	IC CRYSTAL OSCILLATR CLCK 24VQFN RoHS: Compliant Min Qty: 1 Container: Cut Tape (CT)	829In Stock	100:$11.8933 10:$14.0820 1:$15.3200
CDCE421ARGET DISTI # 296-24489-6-ND	IC CRYSTAL OSCILLATR CLCK 24VQFN RoHS: Compliant Min Qty: 1 Container: Digi-Reel®	829In Stock	100:$11.8933 10:$14.0820 1:$15.3200
CDCE421ARGET DISTI # 296-24489-2-ND	IC CRYSTAL OSCILLATR CLCK 24VQFN RoHS: Compliant Min Qty: 250 Container: Tape & Reel (TR)	Temporarily Out of Stock	500:$10.2718 250:$10.9802
CDCE421ARGET DISTI # 25768647	Clock Generator 27.35MHz to 38.33MHz Input 1175MHz Output 24-Pin VQFN EP T/R RoHS: Compliant	183	100:$10.8630 50:$12.5950 25:$12.6050 10:$13.2630 1:$14.3610
CDCE421ARGET DISTI # CDCE421ARGET	PLL Frequency Synthesizer Single 24-Pin VQFN EP T/R - Tape and Reel (Alt: CDCE421ARGET) RoHS: Compliant Min Qty: 250 Container: Reel	Americas - 0	250:$10.1900 500:$9.6900 1000:$9.3900 1500:$9.0900 2500:$8.7900
CDCE421ARGET	Fully Integrated Wide Range Low-Jitter Crystal Oscillator Clock Generator	4000	1000:$8.0500 750:$8.0800 500:$9.0000 250:$9.7800 100:$10.2700 25:$11.7600 10:$12.1800 1:$13.1100
CDCE421ARGET DISTI # 595-CDCE421ARGET	Clock Synthesizer / Jitter Cleaner Fully Int Lo-Jitter Crystal Osc Cl Gen RoHS: Compliant	140	1:$14.8800 10:$13.6800 25:$12.9700 100:$11.5500 250:$10.9900 500:$10.2800
CDCE421ARGER DISTI # 595-CDCE421ARGER	Clock Synthesizer / Jitter Cleaner Fully Int Lo-Jitter Crystal Osc Cl Gen RoHS: Compliant	0	3000:$8.2000
CDCE421ARGET	Clock Generator, 400MHz, CMOS, PQCC24 RoHS: Compliant	45786	1000:$9.3200 500:$9.8100 100:$10.2100 25:$10.6500 1:$11.4700
CDCE421ARGET		362
CDCE421ARGET DISTI # C1S746202077175	Clock Generator 27.35MHz to 38.33MHz-IN 1175MHz-OUT 24-Pin VQFN EP T/R RoHS: Compliant	183	100:$10.8630 50:$12.5950 25:$12.6050 10:$13.2630 1:$14.3610
