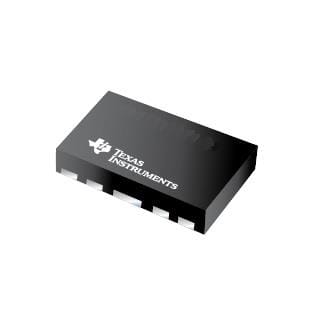

TPD4E02B04QDQARQ1

TPD4E02B04QDQARQ1
Mfr. #:
TPD4E02B04QDQARQ1
Description:
TVS Diodes / ESD Suppressors 4-Channel ESD Protection Diode
Lifecycle:
New from this manufacturer.
Datasheet:
TPD4E02B04QDQARQ1 Datasheet
Delivery:
DHL FedEx Ups TNT EMS
Payment:
T/T Paypal Visa MoneyGram Western Union
ECAD Model:
More Information:
TPD4E02B04QDQARQ1 more Information TPD4E02B04QDQARQ1 Product Details
Product Attribute
Attribute Value
Manufacturer:
Texas Instruments
Product Category:
TVS Diodes / ESD Suppressors
RoHS:
Y
Series:
TPD4E02B04-Q1
Product Type:
ESD Suppressors
Vesd - Voltage ESD Contact:
12 kV
Vesd - Voltage ESD Air Gap:
15 kV
Polarity:
Bidirectional
Number of Channels:
4 Channel
Termination Style:
SMD/SMT
Breakdown Voltage:
5.5 V
Clamping Voltage:
8.8 V
Ipp - Peak Pulse Current:
5 A
Cd - Diode Capacitance:
0.33 pF
Package / Case:
USON-10
Pppm - Peak Pulse Power Dissipation:
17 W
Minimum Operating Temperature:
- 40 C
Maximum Operating Temperature:
+ 125 C
Packaging:
Reel
Brand:
Texas Instruments
Moisture Sensitive:
Yes
Operating Supply Voltage:
3.6 V
Factory Pack Quantity:
3000
Subcategory:
TVS Diodes / ESD Suppression Diodes
Unit Weight:
0.000134 oz
Tags
TPD4E02, TPD4E0, TPD4E, TPD4, TPD
Service Guarantees

We guarantee 100% customer satisfaction.

Quality Guarantees

We provide 90-360 days warranty.

If the items you received were not in perfect quality, we would be responsible for your refund or replacement, but the items must be returned in their original condition.
Our experienced sales team and tech support team back our services to satisfy all our customers.

we buy and manage excess electronic components, including excess inventory identified for disposal.
Email us if you have excess stock to sell.

Email: info@omo-ic.com

Step1: Vacuum Packaging with PL
Step1:
Vacuum Packaging with PL
Step2: Anti-Static Bag
Step2:
Anti-Static Bag
Step3: Packaging Boxes
Step3:
Packaging Boxes
***as Instruments
Automotive Quad 0.2-pF, ±3.6-V, ±12-kV ESD protection diode for USB 3.0 & High Speed Interfaces 10-USON -40 to 125
***ical
ESD Suppressor Diode TVS Bi-Dir 3.6V Automotive 10-Pin USON T/R
***i-Key
TVS DIODE 3.6VWM 8.8VC 10USON
***el Electronic
TVS DIODE 3.6V 8.8V 10USON
***AS INS
The TPD4E02B04-Q1 is an automotive-qualified bidirectional TVS ESD protection diode array for USB Type-C and HDMI 2.0 circuit protection. The TPD4E02B04-Q1 is rated to dissipate ESD strikes up to 10 kV per ISO 10605 (330 pF, 330 Ω) ESD standard. The TPD4E02B04 is also rated to dissipate ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (Level 4).
***AS INSRUMENTS
This device features a 0.25-pF IO capacitance per channel making it ideal for protecting high-speed interfaces up to 10 Gbps such as USB 3.1 Gen2. The low dynamic resistance and low clamping voltage ensure system level protection against transient events.
***TEXAS
The TPD4E02B04-Q1 is offered in the industry standard USON-10 (DQA) package. The package features flow-through routing and 0.5-mm pin pitch easing implementation and reducing design time.
***AS INSTRUM
This device is also available without automotive qualification: TPD4E02B04.
TPD4E02B04 4-Channel ESD Protection Diode
OMO Electronic TPD4E02B04 4-Channel ESD Protection Diode is a bidirectional TVS ESD protection diode array for USB Type-C and HDMI 2.0 circuit protection. The TPD4E02B04 is rated to dissipate ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (Level 4). This device features a 0.27pF IO capacitance per channel making it ideal for protecting high-speed interfaces up to 10Gbps such as USB 3.1 Gen2. The low dynamic resistance and low clamping voltage ensure system level protection against transient events.
Part # Description Stock Price
TPD4E02B04QDQARQ1
DISTI # V72:2272_18754918		ESD Suppressor TVS Bi-Dir 3.6V Automotive441
  • 250:$0.3019
  • 100:$0.3353
  • 25:$0.3741
  • 10:$0.4157
  • 1:$0.4464
TPD4E02B04QDQARQ1
DISTI # 296-48995-1-ND		TVS DIODE 3.6V 8.8V 10USON
RoHS: Compliant
Min Qty: 1
Container: Cut Tape (CT)		3753In Stock
  • 1000:$0.3772
  • 500:$0.4715
  • 100:$0.5965
  • 10:$0.7780
  • 1:$0.8800
TPD4E02B04QDQARQ1
DISTI # 296-48995-6-ND		TVS DIODE 3.6V 8.8V 10USON
RoHS: Compliant
Min Qty: 1
Container: Digi-Reel®		3753In Stock
  • 1000:$0.3772
  • 500:$0.4715
  • 100:$0.5965
  • 10:$0.7780
  • 1:$0.8800
TPD4E02B04QDQARQ1
DISTI # 296-48995-2-ND		TVS DIODE 3.6V 8.8V 10USON
RoHS: Compliant
Min Qty: 3000
Container: Tape & Reel (TR)		On Order
  • 15000:$0.3052
  • 6000:$0.3090
  • 3000:$0.3319
TPD4E02B04QDQARQ1
DISTI # 31587571		ESD Suppressor TVS Bi-Dir 3.6V Automotive21000
  • 12000:$0.3129
  • 6000:$0.3269
  • 3000:$0.3650
TPD4E02B04QDQARQ1
DISTI # 31667295		ESD Suppressor TVS Bi-Dir 3.6V Automotive441
  • 250:$0.4285
  • 100:$0.4286
  • 25:$0.6566
  • 23:$0.6571
TPD4E02B04QDQARQ1
DISTI # TPD4E02B04QDQARQ1		ESD Suppressor TVS ±15KV 10-Pin USON T/R - Tape and Reel (Alt: TPD4E02B04QDQARQ1)
RoHS: Compliant
Min Qty: 3000
Container: Reel		Americas - 6000
  • 3000:$0.3159
  • 6000:$0.3009
  • 12000:$0.2909
  • 18000:$0.2809
  • 30000:$0.2729
TPD4E02B04QDQARQ14-Channel ESD Protection Diode for USB Type-C and HDMI 2.02400
  • 1000:$0.2500
  • 750:$0.2800
  • 500:$0.3500
  • 250:$0.4300
  • 100:$0.4600
  • 25:$0.5400
  • 10:$0.5800
  • 1:$0.6500
TPD4E02B04QDQARQ1
DISTI # 595-D4E02B04QDQARQ1		ESD Suppressors / TVS Diodes 4-Channel ESD Protection Diode
RoHS: Compliant		27526
  • 1:$0.8100
  • 10:$0.6800
  • 100:$0.4360
  • 1000:$0.3490
  • 2000:$0.3170
  • 3000:$0.2950
  • 9000:$0.2840
  • 24000:$0.2730
PTPD4E02B04QDQARQ1
DISTI # 595-PD4E02B04QDQARQ1		ESD Suppressors / TVS Diodes 4-Channel ESD Protection Diode for USB Type-C and HDMI 2.0 10-USON -40 to 1250
