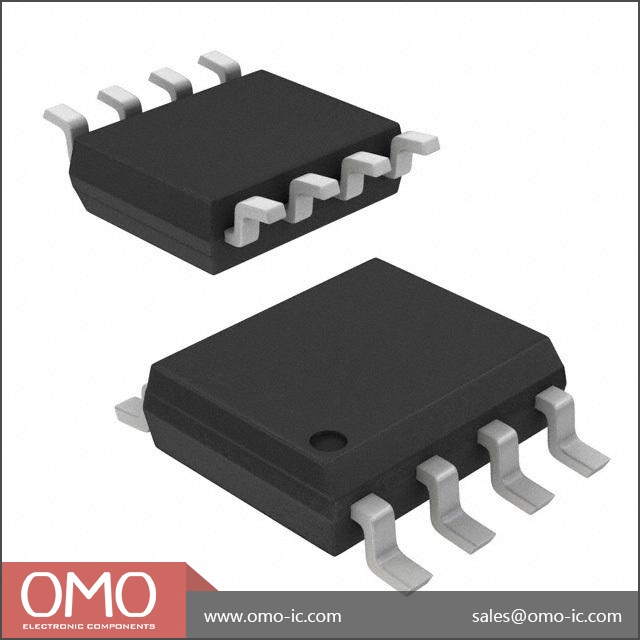

HCPL0701R2

Mfr. #:: HCPL0701R2
Manufacturer:: ON Semiconductor
Description:: OPTOCOUPLER SGL DARL OUT 8-SOIC
Lifecycle:: New from this manufacturer.
Datasheet:: HCPL0701R2 Datasheet
Delivery:: DHL FedEx Ups TNT EMS
Payment:: T/T Paypal Visa MoneyGram Western Union
ECAD Model:

Product Attribute
Attribute Value

Manufacturer: Fairchild Semiconductor

Product Category: Optoisolators - Transistor, Photovoltaic Output

Series: -

Packaging: Digi-ReelR Alternate Packaging

Unit-Weight: 0.008889 oz

Package-Case: SOIC-8 Narrow

Input-Type: DC

Operating-Temperature: -40°C ~ 85°C

Mounting-Type: Surface Mount

Output-Type: Darlington with Base

Number-of-Channels: 1

Supplier-Device-Package: 8-SOIC

Data-Rate: 100 kbps

Current-Output-Channel: 60mA

Voltage-Output-Max: 18V

Current-DC-Forward-If-Max: 20mA

Voltage-Isolation: 2500Vrms

Voltage-Forward-Vf-Typ: 1.25V

Current-Transfer-Ratio-Min: 500% @ 1.6mA

Current-Transfer-Ratio-Max: 2600% @ 1.6mA

Turn-On-Turn-Off-Time-Typ: 300ns, 1.6μs

Rise-Fall-Time-Typ: -

Vce-Saturation-Max: -

Pd-Power-Dissipation: 100 mW

Maximum-Operating-Temperature: + 85 C

Minimum-Operating-Temperature: - 40 C

Vf-Forward-Voltage: 1.25 V

Isolation-Voltage: 2500 Vrms

Output-Current: 60 mA

Vr-Reverse-Voltage: 5 V

If-Forward-Current: 20 mA

Current-Transfer-Ratio: 5000 %

Maximum-Collector-Current: 60 mA

Tags: HCPL0701R, HCPL0701, HCPL070, HCPL07, HCPL0, HCPL, HCP

Service Guarantees

We guarantee 100% customer satisfaction.

Quality Guarantees

We provide 90-360 days warranty.

If the items you received were not in perfect quality, we would be responsible for your refund or replacement, but the items must be returned in their original condition.
Our experienced sales team and tech support team back our services to satisfy all our customers.

we buy and manage excess electronic components, including excess inventory identified for disposal.
Email us if you have excess stock to sell.

Email: info@omo-ic.com

Step1:
Vacuum Packaging with PL

Step2:
Anti-Static Bag

Step3:
Packaging Boxes

HCPL0701R2 Description

***Semiconductor: 8-PIn SOIC Single-Channel Low Current High Gain Split Darlington Output Optocoupler

***et Europe: Optocoupler DC-IN 1-CH Darlington With Base DC-OUT 8-Pin SOIC N T/R

***ure Electronics: SOIC8 Surface Mount Single Channel 18 V 2500 Vrms Darlington Output Optocoupler

***ser: OptoCouplers & OptoIsolators Hi Gain Optocoupler 1Ch LC Darlington

***Components: In a Pack of 5, ON Semiconductor, HCPL0701R2 DC Input Darlington Output Optocoupler, Surface Mount, 8-Pin MDIP

***i-Key: OPTOCOUPLER SGL DARL OUT 8-SOIC

***ark: TAPE REEL / SO8, SPLIT DARLINGTON, T&R

***rchild Semiconductor: The HCPL-0700, HCPL-0701, HCPL-0730 and HCPL-0731 optocouplers consist of an AlGaAs LED optically coupled to a high gain split darlington photodetector housed in a compact 8-pin small outline package. The HCPL-0730 and HCPL-0731 devices have two channels per package for optimum mounting density.The split darlington configuration separating the input photodiode and the first stage gain from the output transistor permits lower output saturation voltage and higher speed operation than possible with conventional darlington phototransistor optocoupler.The combination of a very low input current of 0.5 mA and a high current transfer ratio of 2000% makes this family particularly useful for the input interface to MOS, CMOS, LSTTL and EIA RS232C, while output compatibility is ensured to CMOS as well as high fan-out TTL requirements.

Market price

Part #	Mfg.	Description	Stock	Price
HCPL0701R2 DISTI # 30284880	ON Semiconductor	Optocoupler DC-IN 1-CH Darlington With Base DC-OUT 8-Pin SOIC N T/R	7500	2500:$1.0773
HCPL0701R2 DISTI # HCPL0701R2CT-ND	ON Semiconductor	OPTOCOUPLER SGL DARL OUT 8-SOIC RoHS: Compliant Min Qty: 1 Container: Cut Tape (CT)	2257In Stock	1000:$0.9982 500:$1.1616 100:$1.4520 10:$2.2510 1:$2.5400
HCPL0701R2 DISTI # HCPL0701R2DKR-ND	ON Semiconductor	OPTOCOUPLER SGL DARL OUT 8-SOIC RoHS: Compliant Min Qty: 1 Container: Digi-Reel®	2257In Stock	1000:$0.9982 500:$1.1616 100:$1.4520 10:$2.2510 1:$2.5400
HCPL0701R2 DISTI # HCPL0701R2TR-ND	ON Semiconductor	OPTOCOUPLER SGL DARL OUT 8-SOIC RoHS: Compliant Min Qty: 2500 Container: Tape & Reel (TR)	On Order	5000:$0.8250 2500:$0.8580
HCPL0701R2V DISTI # HCPL0701R2V-ND	ON Semiconductor	OPTOCOUPLER SGL DARL OUT 8-SOIC RoHS: Compliant Min Qty: 2500 Container: Tape & Reel (TR)	Limited Supply - Call
HCPL0701R2V DISTI # HCPL0701R2V	ON Semiconductor	SO8, SPLIT DARLINGTON - Tape and Reel (Alt: HCPL0701R2V) RoHS: Compliant Min Qty: 2500 Container: Reel	Americas - 0	2500:$0.9289 5000:$0.9229 10000:$0.9109 15000:$0.8999 25000:$0.8769
HCPL-0701R2 DISTI # HCPL0701R2	ON Semiconductor	Optocoupler DC-IN 1-CH Darlington With Base DC-OUT 8-Pin SOIC N T/R - Tape and Reel (Alt: HCPL0701R2) RoHS: Compliant Min Qty: 2500 Container: Reel	Americas - 0	2500:$0.7839 5000:$0.7789 10000:$0.7689 15000:$0.7589 25000:$0.7399
HCPL-0701R2 DISTI # HCPL0701R2	ON Semiconductor	Optocoupler DC-IN 1-CH Darlington With Base DC-OUT 8-Pin SOIC N T/R (Alt: HCPL0701R2) RoHS: Compliant Min Qty: 2500 Container: Tape and Reel	Asia - 0	2500:$0.7084 5000:$0.6812 7500:$0.6559 12500:$0.6325 25000:$0.6107 62500:$0.5903 125000:$0.5807
HCPL-0701R2 DISTI # HCPL0701R2	ON Semiconductor	Optocoupler DC-IN 1-CH Darlington With Base DC-OUT 8-Pin SOIC N T/R (Alt: HCPL0701R2) RoHS: Compliant Min Qty: 2500 Container: Tape and Reel	Europe - 0	2500:€1.0429 5000:€0.8689 10000:€0.8019 15000:€0.7449 25000:€0.6949
HCPL0701R2V DISTI # HCPL0701R2V	ON Semiconductor	SO8, SPLIT DARLINGTON (Alt: HCPL0701R2V) RoHS: Compliant Min Qty: 2500	Europe - 0	2500:€1.4719 5000:€1.2039 10000:€1.0289 15000:€0.9339 25000:€0.8919
HCPL0701R2 DISTI # 82C4958	ON Semiconductor	Darlington-NPN-Output dc-Input Optocoupler,1-CHANNEL,2.5kV ISOLATION,SO RoHS Compliant: Yes	0	1:$0.7860 2500:$0.7800 10000:$0.7500 25000:$0.7260
HCPL0701R2 DISTI # 512-HCPL0701R2	ON Semiconductor	High Speed Optocouplers Hi Gain Optocoupler 1Ch LC Darlington RoHS: Compliant	3183	1:$1.7700 10:$1.5000 100:$1.2000 500:$1.0600 1000:$0.8700 2500:$0.8110 5000:$0.7810 10000:$0.7500
HCPL0701 DISTI # 512-HCPL0701	ON Semiconductor	High Speed Optocouplers Hi Gain Optocoupler 1Ch LC Darlington RoHS: Compliant	1540	1:$1.5900 10:$1.3500 100:$1.0800 500:$0.9460 1000:$0.7830 2500:$0.7300
HCPL0701R2V DISTI # 512-HCPL0701R2V	ON Semiconductor	High Speed Optocouplers Hi Gain Optocoupler 1Ch LC Darlington RoHS: Compliant	0
HCPL0701R2	Fairchild Semiconductor Corporation	Logic IC Output Optocoupler, 1-Element, 2500V Isolation RoHS: Compliant	5000	1000:$0.8800 500:$0.9300 100:$0.9700 25:$1.0100 1:$1.0900
HCPL0701R2	ON Semiconductor	SOIC8 Surface Mount Single Channel 18 V 2500 Vrms Darlington Output Optocoupler RoHS: Compliant	15000Reel	2500:$0.7700
HCPL0701R2 DISTI # 8076648P	ON Semiconductor	ICFAIRCHILDHCPL0701R2, RL	820	25:£1.7040
HCPL0701R2	Fairchild Semiconductor Corporation	RoHS: Compliant	Europe - 5000
HCPL0701R2 DISTI # XSFP00000128329	Fairchild Semiconductor Corporation	RoHS: Compliant	10095	2500:$1.0300 10095:$0.9625
