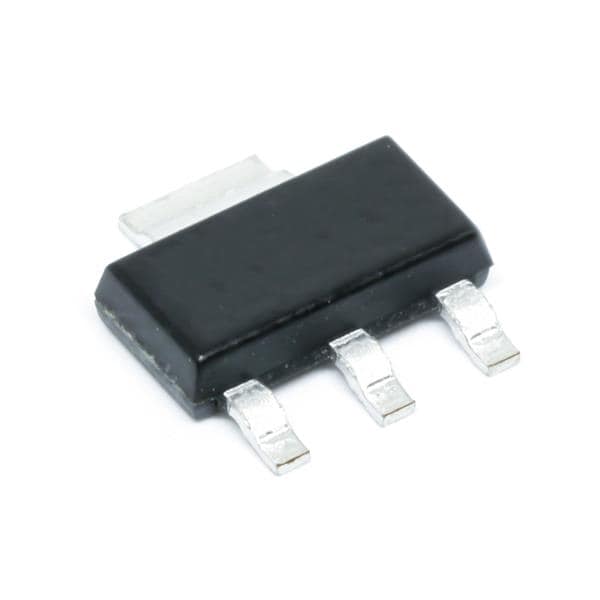

TL1963A-33DCYR

Mfr. #:: TL1963A-33DCYR
Description:: LDO Voltage Regulators 1.5A Lo-Noise Fast- Trans-Resp LDO Reg
Lifecycle:: New from this manufacturer.
Datasheet:: TL1963A-33DCYR Datasheet
Delivery:: DHL FedEx Ups TNT EMS
Payment:: T/T Paypal Visa MoneyGram Western Union
ECAD Model:
More Information:: TL1963A-33DCYR more Information TL1963A-33DCYR Product Details

Product Attribute
Attribute Value

Manufacturer:: Texas Instruments

Product Category:: LDO Voltage Regulators

RoHS:: Y

Mounting Style:: SMD/SMT

Package / Case:: SOT-223-4

Output Voltage:: 3.3 V

Output Current:: 1.5 A

Number of Outputs:: 1 Output

Polarity:: Positive

Input Voltage MAX:: 20 V

Input Voltage MIN:: 1.9 V

Output Type:: Fixed

Minimum Operating Temperature:: - 40 C

Maximum Operating Temperature:: + 125 C

Dropout Voltage:: 340 mV

Series:: TL1963A-33

Packaging:: Reel

Height:: 1.6 mm

Length:: 6.5 mm

Operating Temperature Range:: - 40 C to + 125 C

Width:: 3.5 mm

Brand:: Texas Instruments

Dropout Voltage - Max:: 60 mV at 1 mA

Development Kit:: TL1963A-33EVM

Ib - Input Bias Current:: 1 mA

Line Regulation:: 10 mV

Load Regulation:: 20 mV

Moisture Sensitive:: Yes

Operating Supply Current:: 1 mA

Product Type:: LDO Voltage Regulators

Factory Pack Quantity:: 2500

Subcategory:: PMIC - Power Management ICs

Unit Weight:: 0.003951 oz

Tags: TL1963A-33D, TL1963A-3, TL1963, TL196, TL19, TL1

Service Guarantees

We guarantee 100% customer satisfaction.

Quality Guarantees

We provide 90-360 days warranty.

If the items you received were not in perfect quality, we would be responsible for your refund or replacement, but the items must be returned in their original condition.
Our experienced sales team and tech support team back our services to satisfy all our customers.

we buy and manage excess electronic components, including excess inventory identified for disposal.
Email us if you have excess stock to sell.

Email: info@omo-ic.com

Step1:
Vacuum Packaging with PL

Step2:
Anti-Static Bag

Step3:
Packaging Boxes

TL1963A-33DCYR Description

***p One Stop Global: LDO Regulator Pos 3.3V 1.5A 4-Pin(3+Tab) SOT-223 T/R

***as Instruments: 1.5-A Low-Noise Fast-Transient-Response Low-Dropout Regulator 4-SOT-223 -40 to 125

***ment14 APAC: IC, LDO REG, 3.3V, 1.5A, 5-SOT-223

***nell: LDO VOLTAGE REGULATOR, 3.3V, 1.5A, 5-SOT

***ark: Ldo Voltage Regulator, 3.3V, 1.5A, 5-Sot-223; Output Type:fixed; Input Voltage Min:2.1V; Input Voltage Max:20V; Fixed Output Voltage Nom.:3.3V; Adjustable Output Voltage Min:-; Adjustable Output Voltage Max:-; Output Current:1.5A Rohs Compliant: Yes

***AS USD: The TL1963A-xx devices are low-dropout (LDO) regulators optimized for fast transient response. The device can supply 1.5 A of output current with a dropout voltage of 340 mV. Operating quiescent current is 1 mA, dropping to less than 1 µA in shutdown. Quiescent current is well controlled; it does not rise in dropout as with many other regulators. In addition to fast transient response, the TL1963A-xx regulators have very low output noise, which makes them ideal for sensitive RF supply applications.

***AS INST: Output voltage range is from 1.21 V to 20 V. The TL1963A-xx regulators are stable with output capacitance as low as 10 µF. Small ceramic capacitors can be used without the necessary addition of ESR as is common with other regulators. Internal protection circuitry includes reverse-battery protection, current limiting, thermal limiting, and reverse-current protection. The devices are available in fixed output voltages of 1.5 V, 1.8 V, 2.5 V, 3.3 V, and as an adjustable device with a 1.21-V reference voltage.

Market price

Part #	Description	Stock	Price
TL1963A-33DCYR DISTI # V98:2334_07373069	LDO Regulator Pos 3.3V 1.5A 4-Pin(3+Tab) SOT-223 T/R RoHS: Compliant	2359	1:$1.1512
TL1963A-33DCYR DISTI # 296-24897-1-ND	IC REG LINEAR 3.3V 1.5A SOT223-4 RoHS: Compliant Min Qty: 1 Container: Cut Tape (CT)	27684In Stock	1000:$1.4457 500:$1.7448 100:$2.1237 10:$2.6420 1:$2.9400
TL1963A-33DCYR DISTI # 296-24897-6-ND	IC REG LINEAR 3.3V 1.5A SOT223-4 RoHS: Compliant Min Qty: 1 Container: Digi-Reel®	27684In Stock	1000:$1.4457 500:$1.7448 100:$2.1237 10:$2.6420 1:$2.9400
TL1963A-33DCYR DISTI # 296-24897-2-ND	IC REG LINEAR 3.3V 1.5A SOT223-4 RoHS: Compliant Min Qty: 2500 Container: Tape & Reel (TR)	22500In Stock	5000:$1.2584 2500:$1.3068
TL1963A-33DCYR DISTI # 31075259	LDO Regulator Pos 3.3V 1.5A 4-Pin(3+Tab) SOT-223 T/R RoHS: Compliant	2359	6:$1.1512
TL1963A-33DCYR DISTI # 30596961	LDO Regulator Pos 3.3V 1.5A 4-Pin(3+Tab) SOT-223 T/R RoHS: Compliant	31	10:$2.8305 8:$3.4297
TL1963A-33DCYR DISTI # TL1963A-33DCYR	LDO Regulator Pos 3.3V 1.5A 4-Pin(3+Tab) SOT-223 T/R - Tape and Reel (Alt: TL1963A-33DCYR) RoHS: Compliant Min Qty: 2500 Container: Reel	Americas - 5000	2500:$1.3900 5000:$1.2900 10000:$1.1900 15000:$1.1900 25000:$1.1900
TL1963A-33DCYR DISTI # TL1963A-33DCYR	LDO Regulator Pos 3.3V 1.5A 4-Pin(3+Tab) SOT-223 T/R (Alt: TL1963A-33DCYR) RoHS: Compliant Min Qty: 2500 Container: Tape and Reel	Asia - 0
TL1963A-33DCYR DISTI # 94T5083	LDO VOLTAGE REGULATOR, 3.3V, 1.5A, 5-SOT-223,Output Type:Fixed,Input Voltage Min:2.1V,Input Voltage Max:20V,Fixed Output Voltage Nom.:3.3V,Adjustable Output Voltage Min:-,Adjustable Output Voltage Max:-,Output Current:1.5A , RoHS Compliant: Yes	5000	1:$2.8500 10:$2.4200 25:$2.2600 50:$2.1000 100:$1.9400 250:$1.8200 500:$1.7000 1000:$1.4100
TL1963A-33DCYR	1.5-A Low-Noise Fast-Transient-Response Low-Dropout Regulator	5966	1000:$1.1000 750:$1.1500 500:$1.3700 250:$1.6100 100:$1.7100 25:$1.9600 10:$2.1000 1:$2.3300
TL1963A-33DCYR DISTI # 595-TL1963A-33DCYR	LDO Voltage Regulators 1.5A Lo-Noise Fast- Trans-Resp LDO Reg RoHS: Compliant	33062	1:$2.8500 10:$2.4200 100:$1.9400 500:$1.7000 1000:$1.4100 2500:$1.3100 5000:$1.2600
TL1963A-33DCYR	INSTOCK	32
TL1963A-33DCYR DISTI # 2323632	REGULATOR, LDO, FIXED, 3.3V, SOT-223-4 RoHS: Compliant	0	1:£2.0700 25:£1.8300 50:£1.6500 100:£1.4700 250:£1.3800
TL1963A-33DCYR DISTI # C1S746202169625	LDO Regulator Pos 3.3V 1.5A 4-Pin(3+Tab) SOT-223 T/R RoHS: Compliant	31	10:$2.2200 1:$2.6900
TL1963A-33DCYR DISTI # C1S746203162577	LDO Regulator Pos 3.3V 1.5A 4-Pin(3+Tab) SOT-223 T/R RoHS: Compliant	2359	1:$1.7100
TL1963A-33DCYR DISTI # 2280017	LDO VOLTAGE REGULATOR, 3.3V, 1.5A, 5-SOT RoHS: Compliant	10122	1:$4.5100 10:$3.8400 100:$3.0700 500:$2.6900 1000:$2.2300 2500:$2.0700 5000:$2.0000
TL1963A-33DCYR DISTI # 2323632RL	REGULATOR, LDO, FIXED, 3.3V, SOT-223-4 RoHS: Compliant	0	1:$4.5100 10:$3.8400 100:$3.0700 500:$2.6900 1000:$2.2300 2500:$2.0700 5000:$2.0000
TL1963A-33DCYR DISTI # 2323632	REGULATOR, LDO, FIXED, 3.3V, SOT-223-4 RoHS: Compliant	0	1:$4.5100 10:$3.8400 100:$3.0700 500:$2.6900 1000:$2.2300 2500:$2.0700 5000:$2.0000
