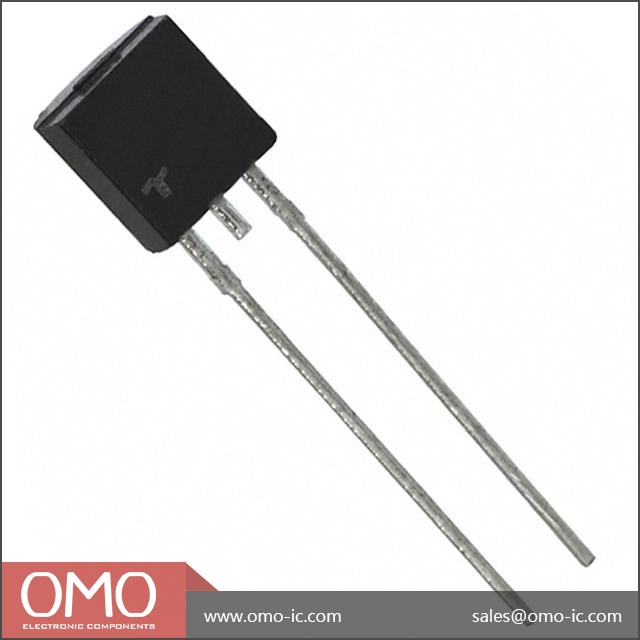

P0720ECLAP

P0720ECLAP
Mfr. #:
P0720ECLAP
Manufacturer:
Littelfuse
Description:
Sidacs 65V 500A
Lifecycle:
New from this manufacturer.
Datasheet:
P0720ECLAP Datasheet
Delivery:
DHL FedEx Ups TNT EMS
Payment:
T/T Paypal Visa MoneyGram Western Union
ECAD Model:
More Information:
P0720ECLAP more Information
Product Attribute
Attribute Value
Manufacturer
Littelfuse Inc.
Product Category
TVS - Thyristors
Series
SIDACtorR
Packaging
Tape & Box (TB) Alternate Packaging
Unit-Weight
0.016000 oz
Mounting-Style
Through Hole
Current-Rating
2.2 A
Tradename
SIDACtor
Package-Case
TO-226-2, TO-92-2 (TO-226AC) (Formed Leads)
Capacitance
150pF
Number-of-Elements
1
Voltage-Breakover
88V
Voltage-Off-State
65V
Current-Peak-Pulse-10-1000μs
100A
Voltage-On-State
4V
Current-Peak-Pulse-8-20μs
400A
Current-Hold-Ih
150mA
Maximum-Operating-Temperature
+ 85 C
Minimum-Operating-Temperature
- 40 C
Breakover-Voltage-VBO
88 V
Breakover-Current-IBO-Max
800 mA
Rated-Repetitive-Off-State-Voltage-VDRM
65 V
Holding-Current-Ih-Max
150 mA
Non-Repetitive-On-State-Current
50 A
Off-State-Leakage-Current-VDRM-IDRM
5 uA
On-State-Voltage
4 V
Off-State-Capacitance-CO
50 pF to 150 pF
Tags
P0720ECL, P0720EC, P0720E, P0720, P072, P07
Service Guarantees

We guarantee 100% customer satisfaction.

Quality Guarantees

We provide 90-360 days warranty.

If the items you received were not in perfect quality, we would be responsible for your refund or replacement, but the items must be returned in their original condition.
Our experienced sales team and tech support team back our services to satisfy all our customers.

we buy and manage excess electronic components, including excess inventory identified for disposal.
Email us if you have excess stock to sell.

Email: info@omo-ic.com

Step1: Vacuum Packaging with PL
Step1:
Vacuum Packaging with PL
Step2: Anti-Static Bag
Step2:
Anti-Static Bag
Step3: Packaging Boxes
Step3:
Packaging Boxes
P-0EAL Voice-DS1 SIDACtor Protection Thyristors
Littelfuse P-0EAL Voice-DS1 SIDACtor Protection Thyristors are designed to protect baseband equipment such as modems, line cards, CPE, and DSL from damaging overvoltage transients. The TO-92 components provide a robust through-hole solution that enables equipment to comply with global regulatory standards. Surge capability does not degrade after multiple surge events within limit. The P-0EA thyristors feature low voltage overshoot, low on-state voltage, low capacitance, and fails short circuit when surged in excess of ratings.
Baseband Voice DS1 SIDACtor Protection Thyristors
Littelfuse Baseband Voice DS1 SIDACtor® Protection Thyristors focus on addressing the performance and regulatory requirements of baseband telecommunications equipment such as voice, modems, and DS1. SIDACtor components are solid state crowbar devices designed to protect telecom equipment during hazardous transient conditions. Utilizing a patented ion implant technology, effective protection is ensured within nanoseconds. The components offer an overvoltage protection solution that helps applications comply with Telcordia GR-1089 Issue 4, ITU-T recommendations K.20, K.21, K.44, and K.45, and TIA-968-A.
SIDACtor® Protection Thyristors
Littelfuse SIDACtor® Protection Thyristors are thyristor devices used to protect sensitive circuits from electrical disturbances caused by lightning-induced surges, inductive-coupled spikes, and AC power fault conditions. The unique structure and characteristics of the thyristor are used to create an overvoltage protection device with precise and repeatable turn-on characteristics with low voltage overshoot and high surge current capabilities. SIDACtor components are solid state crowbar devices with a patented ion implant technology that ensures effective protection within nanoseconds. Littelfuse SIDACtor® Protection Thyristors include a wide range of semiconductor protection thyristor over-voltage transient suppression devices designed to serve requirements of telecom and data networking equipment applications.
Part # Mfg. Description Stock Price
P0720ECLAP
DISTI # P0720ECLAP-ND
Littelfuse IncTHYRISTOR 65V 400A TO226-2
RoHS: Compliant
Min Qty: 2000
Container: Tape & Box (TB)
Temporarily Out of Stock
  • 2000:$0.5880
P0720ECLAP
DISTI # 576-P0720ECLAP
Littelfuse IncThyristor Surge Protection Devices (TSPD) 65V 500A
RoHS: Compliant
0
  • 2000:$0.6300
Image Part # Description
P0720Q12BLRP

Mfr.#: P0720Q12BLRP

OMO.#: OMO-P0720Q12BLRP

Thyristor Surge Protection Devices (TSPD) 65V 100A QFN 3X3 2L SIDACtor Bi
P0720SARP

Mfr.#: P0720SARP

OMO.#: OMO-P0720SARP

Thyristor Surge Protection Devices (TSPD) 50A 65V
P0720ECMCLRP2

Mfr.#: P0720ECMCLRP2

OMO.#: OMO-P0720ECMCLRP2-LITTELFUSE

Sidacs 65V 500A
P0720ECMCLRP1

Mfr.#: P0720ECMCLRP1

OMO.#: OMO-P0720ECMCLRP1-LITTELFUSE

Sidacs 65V 500A
P0720SCLRP

Mfr.#: P0720SCLRP

OMO.#: OMO-P0720SCLRP-LITTELFUSE

Sidacs 500A 65V
P0720EAL

Mfr.#: P0720EAL

OMO.#: OMO-P0720EAL-LITTELFUSE

Sidacs 50A 65V
P0720SBMCL

Mfr.#: P0720SBMCL

OMO.#: OMO-P0720SBMCL-1190

New and Original
P0720SBMCLRP

Mfr.#: P0720SBMCLRP

OMO.#: OMO-P0720SBMCLRP-1190

New and Original
P0720SC

Mfr.#: P0720SC

OMO.#: OMO-P0720SC-LITTELFUSE

TSS DO214AA/SMB, 65V 100A, REEL
P0720SD

Mfr.#: P0720SD

OMO.#: OMO-P0720SD-LITTELFUSE

THYRISTOR 65V 1KA DO214AA
Availability
Stock:
Available
On Order:
5500
Enter Quantity:
Current price of P0720ECLAP is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@omo-ic.com
Reference price (USD)
Quantity
Unit Price
Ext. Price
1
$0.88
$0.88
10
$0.84
$8.38
100
$0.79
$79.38
500
$0.75
$374.85
1000
$0.71
$705.60
Due to semiconductor in short supply from 2021,below price is the Normal price before 2021.please send inquire to confirm.
