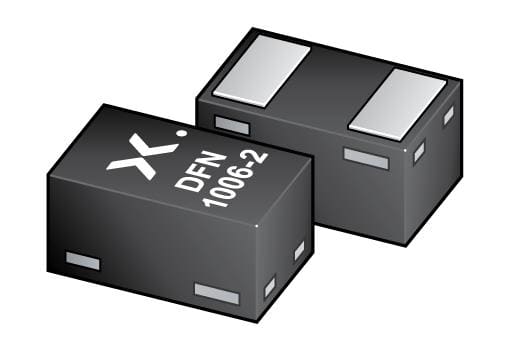

PESD5V0S1UL,315

Mfr. #:: PESD5V0S1UL,315
Manufacturer:: Nexperia
Description:: TVS Diodes / ESD Suppressors SNGLE UNI ESD DIODES
Lifecycle:: New from this manufacturer.
Datasheet:: PESD5V0S1UL,315 Datasheet
Delivery:: DHL FedEx Ups TNT EMS
Payment:: T/T Paypal Visa MoneyGram Western Union
ECAD Model:

Product Attribute
Attribute Value

Manufacturer:: Nexperia

Product Category:: TVS Diodes / ESD Suppressors

RoHS:: Y

Series:: PESDxS1UL

Product Type:: ESD Suppressors

Polarity:: Unidirectional

Termination Style:: SMD/SMT

Breakdown Voltage:: 6.8 V

Working Voltage:: 5 V

Clamping Voltage:: 20 V

Package / Case:: DFN-1006-2

Pppm - Peak Pulse Power Dissipation:: 150 W

Minimum Operating Temperature:: - 65 C

Maximum Operating Temperature:: + 105 C

Qualification:: AEC-Q101

Packaging:: Reel

Brand:: Nexperia

Factory Pack Quantity:: 10000

Subcategory:: TVS Diodes / ESD Suppression Diodes

Part # Aliases:: PESD5V0S1UL T/R

Unit Weight:: 0.000033 oz
