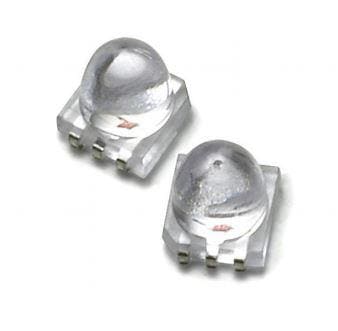

ASMT-FG10-NFJ00

Mfr. #:: ASMT-FG10-NFJ00
Manufacturer:: Broadcom / Avago
Description:: Standard LEDs - SMD Green
Lifecycle:: New from this manufacturer.
Datasheet:: ASMT-FG10-NFJ00 Datasheet
Delivery:: DHL FedEx Ups TNT EMS
Payment:: T/T Paypal Visa MoneyGram Western Union
HTML Datasheet:: ASMT-FG10-NFJ00 Datasheet ASMT-FG10-NFJ00 Datasheet (P4-P6)ASMT-FG10-NFJ00 Datasheet (P7)
ECAD Model:

Product Attribute
Attribute Value

Manufacturer:: Broadcom Limited

Product Category:: Standard LEDs - SMD

RoHS:: Y

Product:: Green LEDs

Orientation:: Top View

Illumination Color:: Green

Wavelength/Color Temperature:: 530 nm

Luminous Intensity:: 41 cd

Viewing Angle:: 11 deg

Lens Color/Style:: Clear

If - Forward Current:: 20 mA

Vf - Forward Voltage:: 3.3 V

Power Rating:: 80 mW

Length:: 4.8 mm

Height:: 5.33 mm

Width:: 4.8 mm

Minimum Operating Temperature:: - 40 C

Maximum Operating Temperature:: + 85 C

Series:: ASMT-F

Packaging:: Reel

Brand:: Broadcom / Avago

Lens Shape:: Dome

Mounting Style:: SMD/SMT

Peak Wavelength:: 525 nm

Lens Dimensions:: 4.32 mm

Moisture Sensitive:: Yes

Product Type:: LED - Standard

Factory Pack Quantity:: 1000

Subcategory:: LEDs

Vr - Reverse Voltage:: 5 V

Tags: ASMT-F, ASMT, ASM

Service Guarantees

We guarantee 100% customer satisfaction.

Quality Guarantees

We provide 90-360 days warranty.

If the items you received were not in perfect quality, we would be responsible for your refund or replacement, but the items must be returned in their original condition.
Our experienced sales team and tech support team back our services to satisfy all our customers.

we buy and manage excess electronic components, including excess inventory identified for disposal.
Email us if you have excess stock to sell.

Email: info@omo-ic.com

Step1:
Vacuum Packaging with PL

Step2:
Anti-Static Bag

Step3:
Packaging Boxes

ASMT-FG10-NFJ00 Description

***et: LED Uni-Color Green 525nm 6-Pin SMD T/R

***ser: LED SMD Standard Chip,AFA,Top Mt,AlIn GaP,Grn

***trelec: SMD LED [Broadcom] ASMT-FG10-NFJ00 SMD LED

***Components: AVAGO LED ASMT-FG10-NFJ00

***go: Surface Mount Auto Focus Lamp

***i-Key: LAMP AF DOME INGAN GREEN SMD

***ark: SMD LED, GREEN, 80mW, 41CD; LED Color:Green; Luminous Intensity:41cd; Viewing Angle:11°; Forward Current If:20mA; Forward Voltage:3.3V; LED Mounting:SMD; Lens Shape:Dome; Wavelength Typ:530nm; MSL:MSL 3 - 168 hours; No. of Pins:6 ;RoHS Compliant: Yes

***nell: LED, SMD, AFA, GREEN; LED / Lamp Size:4.32mm; LED Colour:Green; Typ Luminous Intensity:40000mcd; Viewing Angle:6°; Forward Current:20mA; Voltage, Vf Max:3.9V; Operating Temperature Range:-40°C to +85°C; Termination Type:SMD; Wavelength, Peak:525nm

***ment14 APAC: LED, SMD, AFA, GREEN; Bulb Size:4.32mm; LED Colour:Green; Luminous Intensity:40cd; Viewing Angle:6°; Forward Current If:20mA; Forward Voltage:3.3V; LED Mounting:SMD; Lens Shape:Round; Wavelength Typ:530nm; MSL:MSL 3 - 168 hours; SVHC:No SVHC (19-Dec-2011); Dominant Wavelength:530nm; LED / Lamp Size:4.32mm; LED Type:Standard; Luminous Intensity Typ:40000mcd; Mounting Type:SMD; No. of Pins:6; Operating Temperature Range:-40°C to +85°C; Opto Case Style:SMD; Peak Wavelength:525nm; Termination Type:SMD

Market price

Part #	Mfg.	Description	Stock	Price
ASMT-FG10-NFJ00 DISTI # ASMT-FG10-NFJ00-ND	Broadcom Limited	LED GREEN CLEAR SMD RoHS: Compliant Min Qty: 6000 Container: Tape & Reel (TR)	Temporarily Out of Stock	6000:$0.6240
ASMT-FG10-NFJ00 DISTI # ASMT-FG10-NFJ00	Broadcom Limited	LED Uni-Color Green 525nm 6-Pin SMD T/R (Alt: ASMT-FG10-NFJ00) RoHS: Compliant Min Qty: 1000 Container: Tape and Reel	Europe - 89000	1000:€0.9269 2000:€0.7579 4000:€0.6949 6000:€0.6419 10000:€0.5959
ASMT-FG10-NFJ00 DISTI # ASMT-FG10-NFJ00	Broadcom Limited	LED Uni-Color Green 525nm 6-Pin SMD T/R - Tape and Reel (Alt: ASMT-FG10-NFJ00) RoHS: Compliant Min Qty: 6000 Container: Reel	Americas - 0	6000:$0.6569 8000:$0.6399 14000:$0.6149 30000:$0.6069 60000:$0.5919
ASMT-FG10-NFJ00 DISTI # 630-ASMT-FG10-NFJ00	Broadcom Limited	Standard LEDs - SMD Green RoHS: Compliant	739	1:$1.8000 10:$1.2000 100:$0.9120 500:$0.7970 1000:$0.6720 2000:$0.6240 10000:$0.6000
ASMT-FG10-NFJ00 DISTI # ASMT-FG10-NFJ00	Broadcom Limited	LED,SMD,PLCC6,2018,green,18-96mcd,4.8x4.8x4.33mm,11°,20mA	1000	1:$1.3982 5:$1.1576 25:$1.0154 100:$0.9799 500:$0.9455
ASMTFG10NFJ00	Broadcom Limited	Single Color LED, Green, Clear Nondiffused, 4.32mm RoHS: Compliant	Europe - 1000
