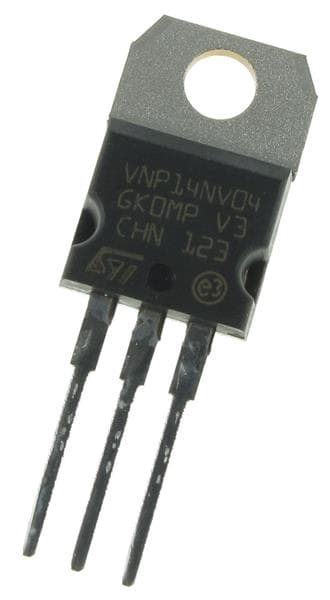

VNP14NV04-E

Mfr. #:: VNP14NV04-E
Manufacturer:: STMicroelectronics
Description:: Gate Drivers N-Ch 40V 14A OmniFET
Lifecycle:: New from this manufacturer.
Datasheet:: VNP14NV04-E Datasheet
Delivery:: DHL FedEx Ups TNT EMS
Payment:: T/T Paypal Visa MoneyGram Western Union
ECAD Model:
More Information:: VNP14NV04-E more Information VNP14NV04-E Product Details

Product Attribute
Attribute Value

Manufacturer:: STMicroelectronics

Product Category:: Gate Drivers

RoHS:: Y

Product:: MOSFET Gate Drivers

Type:: Non-Inverting

Mounting Style:: Through Hole

Package / Case:: TO-220-3

Number of Drivers:: 1 Driver

Number of Outputs:: 1 Output

Configuration:: Single

Rise Time:: 350 ns

Fall Time:: 150 ns

Operating Supply Current:: 20 mA

Pd - Power Dissipation:: 74 W

Minimum Operating Temperature:: - 40 C

Maximum Operating Temperature:: + 150 C

Series:: VNP14NV04-E

Qualification:: AEC-Q100

Packaging:: Tube

Operating Temperature Range:: - 40 C to + 150 C

Technology:: Si

Brand:: STMicroelectronics

Maximum Turn-Off Delay Time:: 1350 ns

Maximum Turn-On Delay Time:: 250 ns

Product Type:: Gate Drivers

Factory Pack Quantity:: 1000

Subcategory:: PMIC - Power Management ICs

Unit Weight:: 0.079014 oz

Tags: VNP14NV, VNP14, VNP1, VNP
