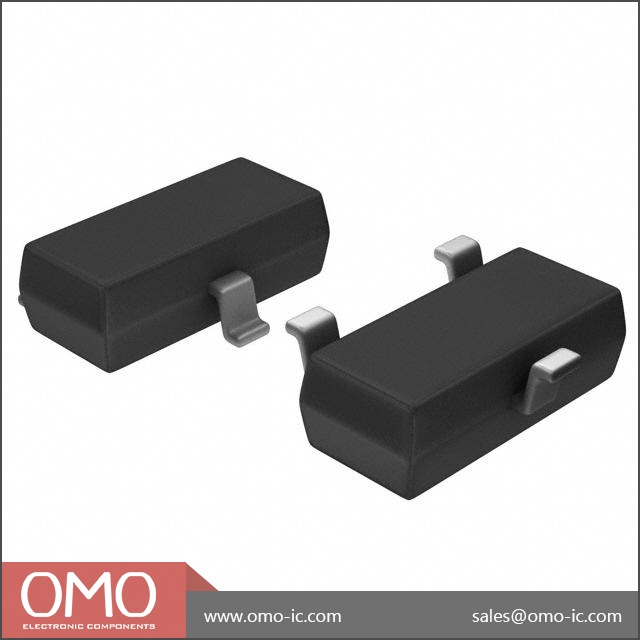

DNBT8105-7

Mfr. #:: DNBT8105-7
Manufacturer:: Diodes Incorporated
Description:
Lifecycle:: New from this manufacturer.
Datasheet:: DNBT8105-7 Datasheet
Delivery:: DHL FedEx Ups TNT EMS
Payment:: T/T Paypal Visa MoneyGram Western Union
ECAD Model:

Product Attribute
Attribute Value

Manufacturer: Diodes Incorporated

Product Category: Transistors (BJT) - Single

Series: DNBT8

Packaging: Digi-ReelR Alternate Packaging

Unit-Weight: 0.000282 oz

Mounting-Style: SMD/SMT

Package-Case: TO-236-3, SC-59, SOT-23-3

Mounting-Type: Surface Mount

Supplier-Device-Package: SOT-23-3

Configuration: Single

Power-Max: 600mW

Transistor-Type: NPN

Current-Collector-Ic-Max: 1A

Voltage-Collector-Emitter-Breakdown-Max: 60V

DC-Current-Gain-hFE-Min-Ic-Vce: 100 @ 500mA, 5V

Vce-Saturation-Max-Ib-Ic: 500mV @ 100mA, 1A

Current-Collector-Cutoff-Max: 100nA

Frequency-Transition: 150MHz

Pd-Power-Dissipation: 300 mW

Maximum-Operating-Temperature: + 150 C

Minimum-Operating-Temperature: - 55 C

Collector-Emitter-Voltage-VCEO-Max: 60 V

Transistor-Polarity: NPN

Collector-Emitter-Saturation-Voltage: 500 mV

Collector-Base-Voltage-VCBO: 80 V

Emitter-Base-Voltage-VEBO: 5 V

Maximum-DC-Collector-Current: 2 A

Gain-Bandwidth-Product-fT: 150 MHz

DC-Collector-Base-Gain-hfe-Min: 30 at 2 A 5 V

Tags: DNBT8105-7, DNBT81, DNBT, DNB

Service Guarantees

We guarantee 100% customer satisfaction.

Quality Guarantees

We provide 90-360 days warranty.

If the items you received were not in perfect quality, we would be responsible for your refund or replacement, but the items must be returned in their original condition.
Our experienced sales team and tech support team back our services to satisfy all our customers.

we buy and manage excess electronic components, including excess inventory identified for disposal.
Email us if you have excess stock to sell.

Email: info@omo-ic.com

Step1:
Vacuum Packaging with PL

Step2:
Anti-Static Bag

Step3:
Packaging Boxes

DNBT8105-7 Description

***ure Electronics: DNBT8105 Series NPN 60 V 600 mW Small Signal Transistor SMT - SOT-23-3

***p One Stop Global: Trans GP BJT NPN 60V 1A 300mW Automotive 3-Pin SOT-23 T/R

***et: BIPOLAR TRANSISTOR 1A NPN SOT-23 GREEN 3K

Market price

Part #	Mfg.	Description	Stock	Price
DNBT8105-7 DISTI # V72:2272_06698014	Zetex / Diodes Inc	Trans GP BJT NPN 60V 1A Automotive 3-Pin SOT-23 T/R	3848	500:$0.0775 250:$0.0804 100:$0.0893 25:$0.1923 10:$0.2138 1:$0.3230
DNBT8105-7 DISTI # DNBT8105DICT-ND	Diodes Incorporated	TRANS NPN 60V 1A SOT23-3 RoHS: Compliant Min Qty: 1 Container: Cut Tape (CT)	266040In Stock	1000:$0.0774 500:$0.1114 100:$0.1667 10:$0.3090 1:$0.3800
DNBT8105-7 DISTI # DNBT8105DIDKR-ND	Diodes Incorporated	TRANS NPN 60V 1A SOT23-3 RoHS: Compliant Min Qty: 1 Container: Digi-Reel®	266040In Stock	1000:$0.0774 500:$0.1114 100:$0.1667 10:$0.3090 1:$0.3800
DNBT8105-7 DISTI # DNBT8105DITR-ND	Diodes Incorporated	TRANS NPN 60V 1A SOT23-3 RoHS: Compliant Min Qty: 3000 Container: Tape & Reel (TR)	264000In Stock	75000:$0.0462 30000:$0.0490 15000:$0.0517 6000:$0.0600 3000:$0.0683
DNBT8105-7 DISTI # 30716920	Zetex / Diodes Inc	Trans GP BJT NPN 60V 1A Automotive 3-Pin SOT-23 T/R	3848	100:$0.0893 63:$0.1923
DNBT8105-7 DISTI # DNBT8105-7	Diodes Incorporated	Trans GP BJT NPN 60V 1A 3-Pin SOT-23 T/R - Tape and Reel (Alt: DNBT8105-7) RoHS: Not Compliant Min Qty: 3000 Container: Reel	Americas - 105000	3000:$0.0438 6000:$0.0437 12000:$0.0417 18000:$0.0403 30000:$0.0378
DNBT8105-7 DISTI # DNBT8105-7	Diodes Incorporated	Trans GP BJT NPN 60V 1A 3-Pin SOT-23 T/R (Alt: DNBT8105-7) RoHS: Compliant Min Qty: 3000 Container: Tape and Reel	Europe - 3000	3000:€0.0431 6000:€0.0402 12000:€0.0372 18000:€0.0358 30000:€0.0333
DNBT8105-7 DISTI # DNBT8105-7	Diodes Incorporated	Trans GP BJT NPN 60V 1A 3-Pin SOT-23 T/R (Alt: DNBT8105-7) RoHS: Compliant Min Qty: 3000 Container: Tape and Reel	Asia - 15000	3000:$0.0570 6000:$0.0545 9000:$0.0522 15000:$0.0507 30000:$0.0500 75000:$0.0487 150000:$0.0475
DNBT8105-7 DISTI # DNBT8105-7	Diodes Incorporated	Trans GP BJT NPN 60V 1A 3-Pin SOT-23 T/R - Cut TR (SOS) (Alt: DNBT8105-7) RoHS: Not Compliant Min Qty: 1 Container: Cut Tape	Americas - 0	1:$0.2359 30:$0.1859 75:$0.1189 150:$0.0809 375:$0.0759 750:$0.0709 1500:$0.0619
DNBT8105-7 DISTI # 25R4543	Diodes Incorporated	TRANSISTOR, NPN, 60V, 1A, 600mW, SOT-23,Transistor Polarity:NPN,Collector Emitter Voltage V(br)ceo:60V,Transition Frequency ft:150MHz,Power Dissipation Pd:600mW,DC Collector Current:1A,DC Current Gain hFE:100hFE,Packaging:Each, RoHS Compliant: Yes	165	1:$0.3420 10:$0.2290 25:$0.1860 50:$0.1440 100:$0.1000 250:$0.0910 500:$0.0810 1000:$0.0710
DNBT8105-7 DISTI # 70438143	Diodes Incorporated	Transistor NPN 60V 1A SOT23 RoHS: Compliant	0	100:$0.1900 500:$0.1600 1000:$0.1500 2500:$0.1400
DNBT8105-7 DISTI # 621-DNBT8105-7	Diodes Incorporated	Bipolar Transistors - BJT 1A RoHS: Compliant	17367	1:$0.3400 10:$0.2250 100:$0.0940 1000:$0.0640 3000:$0.0500 9000:$0.0430 24000:$0.0400 45000:$0.0380 99000:$0.0330
DNBT8105-7 DISTI # 7114923P	Zetex / Diodes Inc	TRANSISTOR NPN 60V 1A SOT23, RL	5150	600:£0.0670 1500:£0.0550
DNBT8105-7 DISTI # TDSTD7743	Diodes Incorporated	NPN TRANSISTOR 60V 1A SOT23	Stock DE - 0Stock US - 0	3000:$0.0803 6000:$0.0746 9000:$0.0710 15000:$0.0642 21000:$0.0590
DNBT8105-7 DISTI # C1S205700039688	Diodes Incorporated	Trans GP BJT NPN 60V 1A 300mW Automotive 3-Pin SOT-23 T/R RoHS: Compliant	3848	100:$0.1010 25:$0.1923
DNBT8105-7 DISTI # 1713868	Diodes Incorporated	BIPOLAR, TRANSISTOR, NPN, SOT-23 RoHS: Compliant	445	5:£0.2040 25:£0.1260 100:£0.0804 250:£0.0746 500:£0.0704
DNBT8105-7 DISTI # 1713868	Diodes Incorporated	BIPOLAR, TRANSISTOR, NPN, SOT-23 RoHS: Compliant	190	1:$0.5380 10:$0.3560 100:$0.1500 1000:$0.1010 3000:$0.0790 9000:$0.0690 24000:$0.0630 45000:$0.0630
