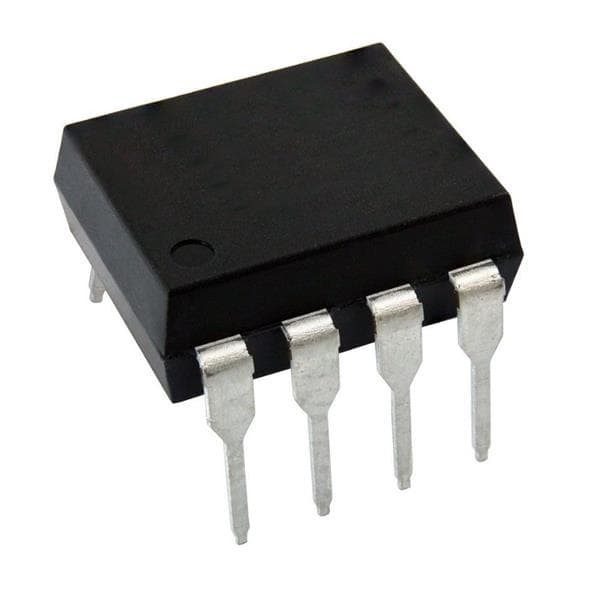

HCPL-2300-060E

Mfr. #:: HCPL-2300-060E
Manufacturer:: Broadcom / Avago
Description:: High Speed Optocouplers 8MBd 1Ch 4mA
Lifecycle:: New from this manufacturer.
Datasheet:: HCPL-2300-060E Datasheet
Delivery:: DHL FedEx Ups TNT EMS
Payment:: T/T Paypal Visa MoneyGram Western Union
HTML Datasheet:: HCPL-2300-060E Datasheet HCPL-2300-060E Datasheet (P4-P6)HCPL-2300-060E Datasheet (P7-P9)HCPL-2300-060E Datasheet (P10-P12)HCPL-2300-060E Datasheet (P13-P14)
ECAD Model:

Product Attribute
Attribute Value

Manufacturer:: Broadcom Limited

Product Category:: High Speed Optocouplers

RoHS:: Y

Package / Case:: PDIP-8

Data Rate:: 8 Mb/s

Number of Channels:: 1 Channel

Output Type:: Open Collector

Isolation Voltage:: 3750 Vrms

Vf - Forward Voltage:: 1.3 V

If - Forward Current:: 1 mA

Vr - Reverse Voltage:: 3 V

Pd - Power Dissipation:: 40 mW

Minimum Operating Temperature:: - 40 C

Maximum Operating Temperature:: + 85 C

Packaging:: Tube

Height:: 3.56 mm

Length:: 9.65 mm

Output Current:: 25 mA

Width:: 6.35 mm

Brand:: Broadcom / Avago

Fall Time:: 20 ns

Product Type:: High Speed Optocouplers

Rise Time:: 40 ns

Factory Pack Quantity:: 50

Subcategory:: Optocouplers
