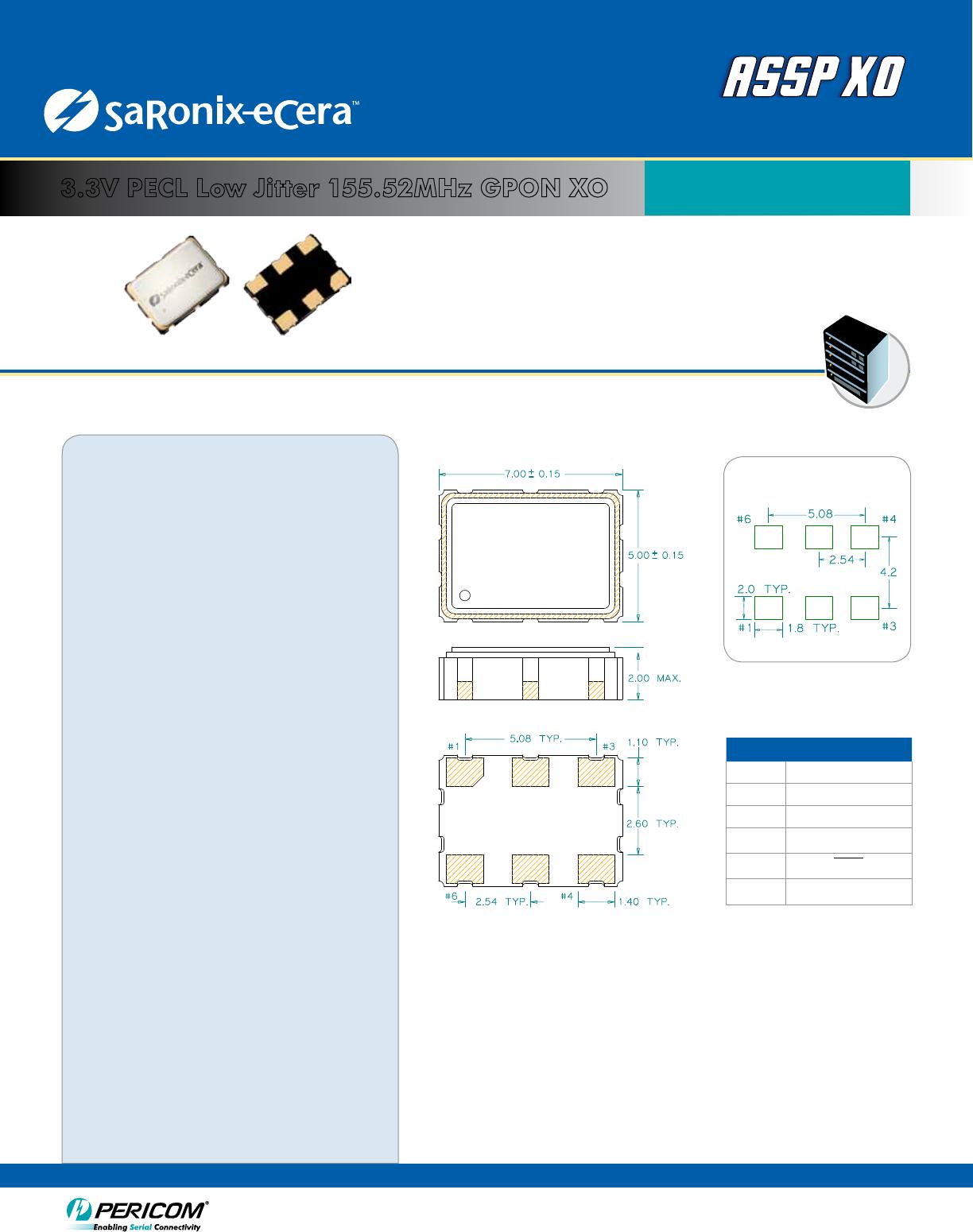

SNGPON155 Datasheet SNGPON155 | P1-P2

SaRonix-eCera™ is a Pericom® Semiconductor company • US: +1-408-435-0800 TW: +886-3-4518888 • www.pericom.com

All specifications are subject to change without notice. SNGPON155 Rev C 04/09/10

10-0020

3.3V PECL Low Jitter 155.52MHz GPON XO

SNGPON155

Application Specific Crystal Oscillator 7.0 x 5.0mm

Product Features

• Very low phase jitter - 0.5ps RMS

• Thicker crystal for improved reliability

• Pb-free & RoHS compliant

• Industrial temperature range

Product Description

The SN series 3.3V, 155.52MHz crystal

clock oscillator achieves superb jitter for

GPON applications. The output clock

signal, generated internally with a patented

oscillator design, is compatible with LVPECL

logic levels. The device, available on tape

and reel, is contained in a 7.0 x 5.0mm

surface-mount ceramic package.

Applications

• GPON Optical Network Unit (ONU)

• GPON Optical Line Termination (OLT)

• GPON Gateway

Package:

Recommended Land Pattern:

Part Ordering Information:

SNGPON155

*Extended high frequency power decoupling is recommended (see test circuit for minimum

recommendation). To ensure optimal performance, do not route RF traces beneath the

package.

7.0 x 5.0mm Ceramic SMD

ASSP XO™ for Networking

Pin Functions:

Pin Function

1 OE Function

2 N/C

3 Ground

4 OUT

OUT

6 V

SaRonix-eCera™ is a Pericom® Semiconductor company • US: +1-408-435-0800 TW: +886-3-4518888 • www.pericom.com

All specifications are subject to change without notice. SNGPON155 Rev C 04/09/10

10-0020

3.3V PECL Low Jitter 155.52 MHz GPON XO

Application Specific Crystal Oscillator 7.0 x 5.0mm

SNGPON155

Output Enable / Disable Function

Parameter Min. Typ. Max. Units Notes

Input Voltage (pin 1), Output Enable 2.2 V or open

Input Voltage (pin 1), Output Disable (low power standby) 0.8 V Outputs disabled to Hi-Z

Internal Pullup Resistance 50 kΩ

Output Disable Delay 200 ns

Output Enable Delay 10 ms

Electrical Performance

Parameter Min. Typ. Max. Units Notes

Output Frequency 155.52 MHz

Supply Voltage 2.97 3.30 3.63 V

Supply Current, Output Enabled 50 60 mA

Supply Current, Output Disabled 25 mA

Frequency Stability ±50 ppm See Note 1 below

Operating Temperature Range -40 +85 °C Industrial

Output Logic 0, V

–

1.620

V 0 to +85°C

–

1.555

V -40 to 0°C

Output Logic 1, V

–

1.025

V 0 to +85°C

–

1.085

V -40 to +0°C

Output Load

50Ω to V

– 2V

output requires termination

Duty Cycle 45 55 % Measured 50% V

Rise and Fall Time 0.3 0.6 ns Measured 20/80% of waveform

Jitter, Phase RMS (1-σ) 0.25 0.5 ps 12 kHz to 20 MHz frequency band

Jitter, pk–pk

25 40 ps 100,000 random periods

Notes:

1. Stability includes all combinations of operating temperature, load changes, rated input (supply) voltage changes, initial calibration tolerance (25°C),

aging (5 year at 40°C average effective ambient temperature), shock and vibration.

2. For specications othere than those listed, please contact sales.

Absolute Maximum Ratings

Parameter Min. Typ. Max. Units Notes

Storage Temperature -55 +125 °C

For the latest product information visit: http://www.pericom.com/products/timing/oscillators/SNGPON155/

For test circuit go to: http://www.pericom.com/pdf/sre/tc_pecl.pdf

For soldering reflow profile and reliability test ratings go to: http://www.pericom.com/pdf/sre/reflow.pdf

For typical phase noise go to: http://www.pericom.com/pdf/sre/pn_SNGPON155.pdf

For tape and reel information go to: http://www.pericom.com/pdf/sre/tr_7050.pdf
