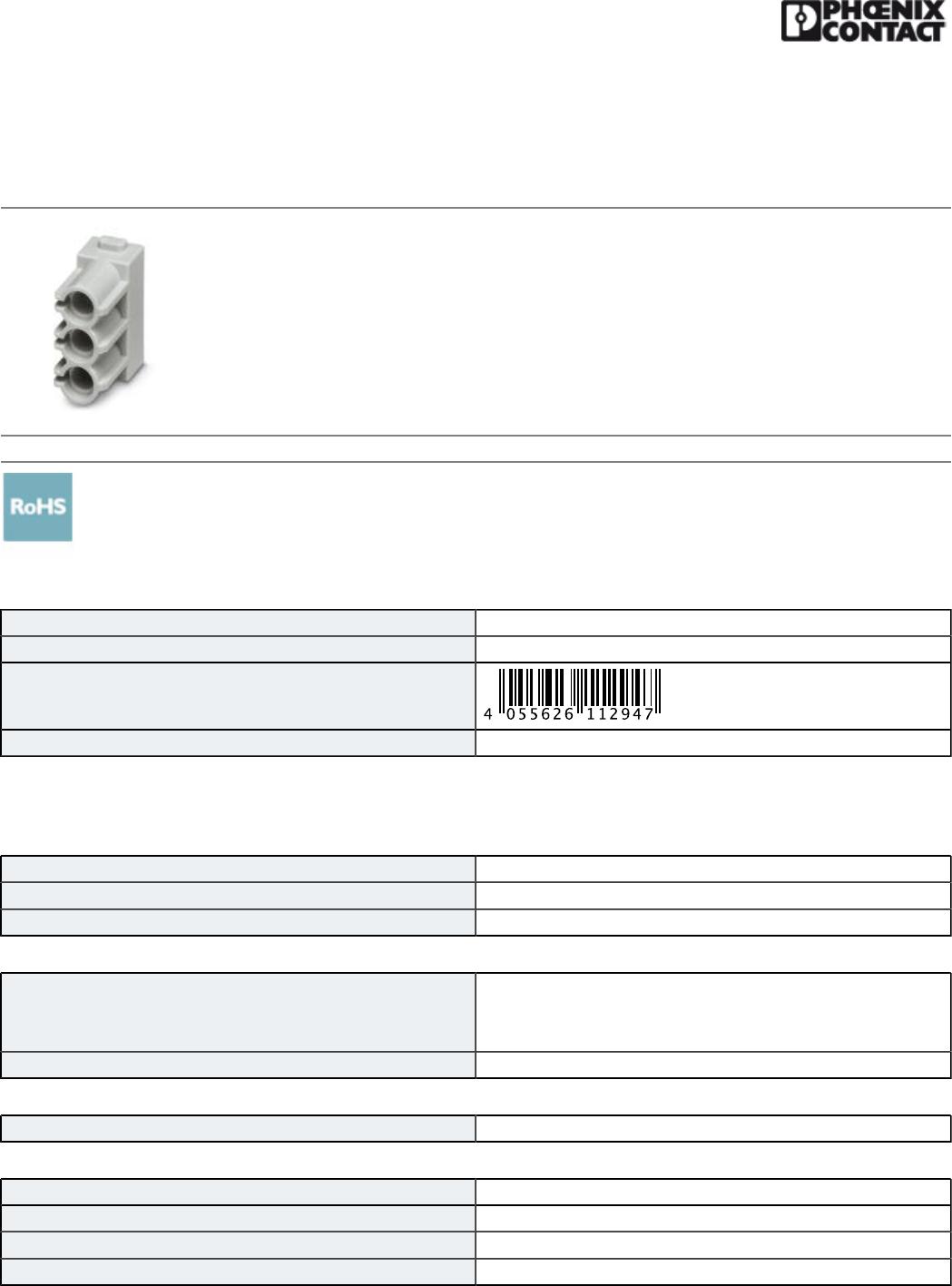

Contact insert module-HC-M-03-PN-M-F-1417433
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Contact insert module,Number of positions:3,Socket/pin,Application:Pneumatics,for internal hose diameter
of 1.6 / 3 / 4 mm
Key Commercial Data
Packing unit 5 STK
Minimum order quantity 5 STK
GTIN
GTIN 4055626112947
Technical data

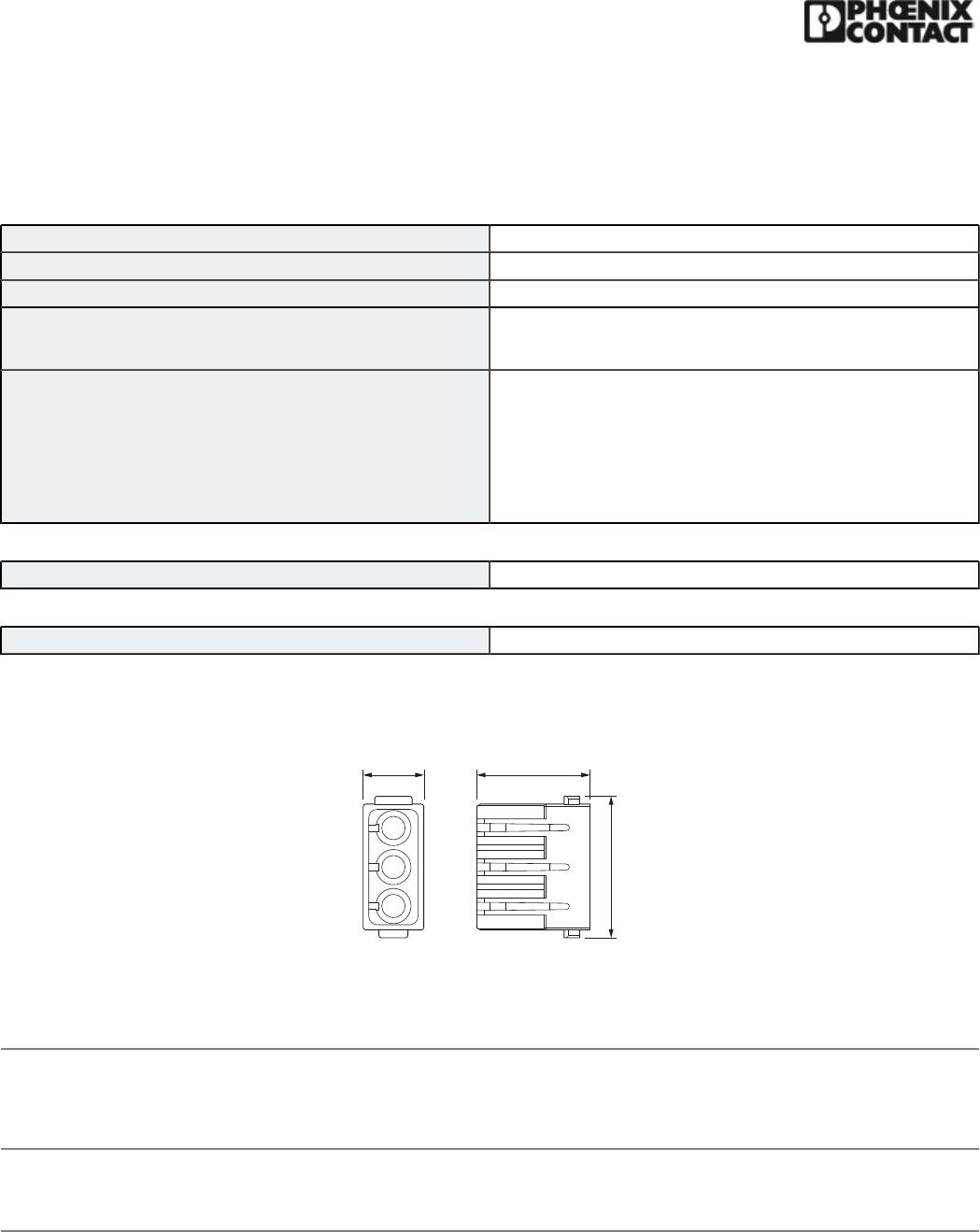

Dimensions
Height 27.2 mm
Width 34.1 mm
Length 14.6 mm
Electrical characteristics
Note
For HEAVYCON ADVANCE housing type B6 to B24 and HEAVYCON
housing type B6 to B48. HEAVYCON HC-M-B...-MF... module carrier
frame required, HC-M-PN... pneumatic pins and sockets are not
supplied as standard.
Connection profile 3
Ambient conditions
Ambient temperature (operation) -40 °C ... 80 °C
Mechanical characteristics
Internal diameter of pressure hose connection 1.6 mm
3 mm
4 mm
Insertion/withdrawal cycles ≥ 500
