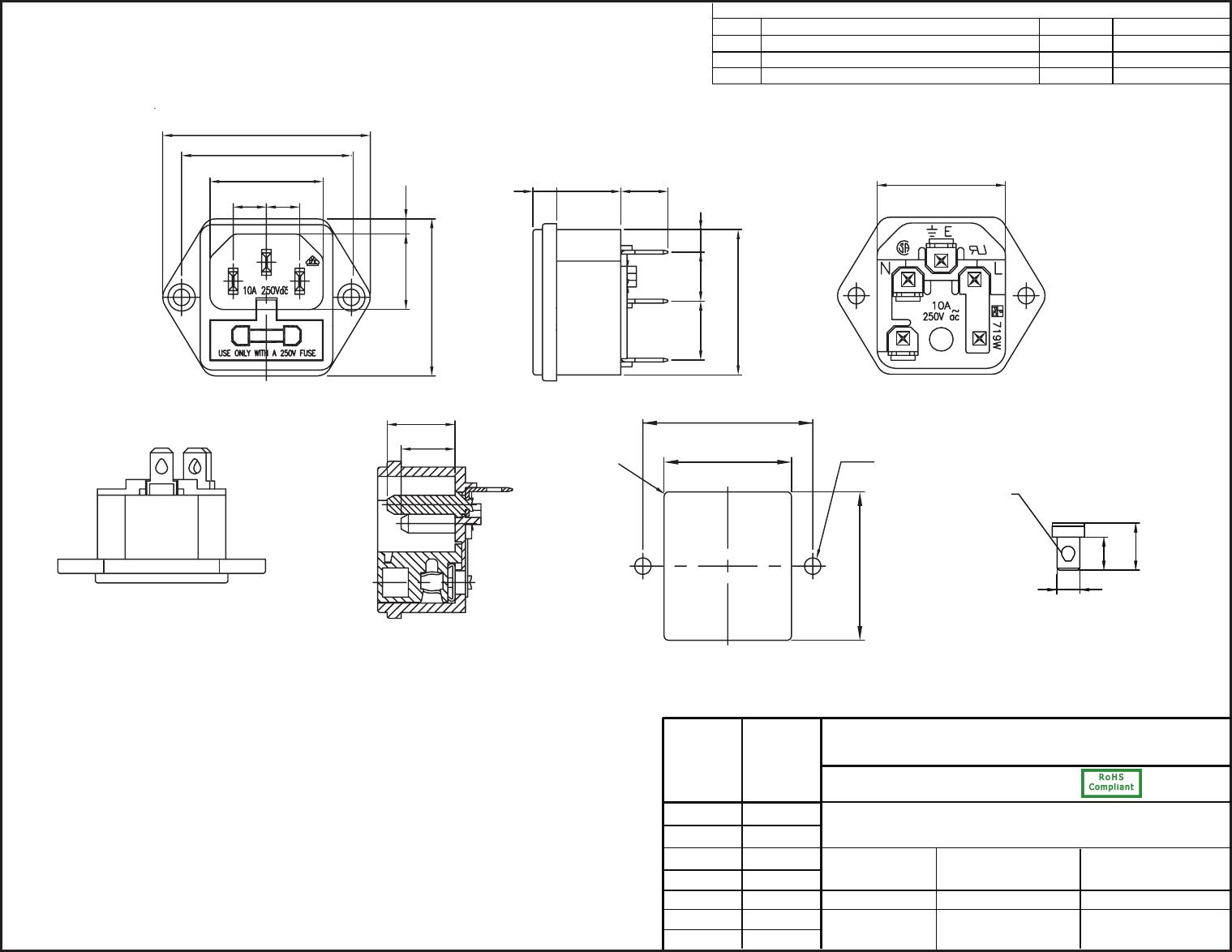

Qualtek Electronics Corp.
PPC DIVISION
Part Number:
719W-00/03
Description:
AC RECEPTACLE
Tolerance
+/-
(mm)
Dim
range
(mm)
0-1
1-6
6-18
18-50
50-120
120-250
250-500
0.15
0.20
0.30
0.50
0.70
0.90
1.20
Drawn / Date
Checked / Date
Approved / Date
B.Zhang
08-28-02
08-28-02
JJH / 08-28-02
UNIT: mm REV. C
NOTES:
MATERIAL:
MOULDING: NYLON, FLAMMABILITY RATING UL 94 V-0
CONTACTS: BRASS, PINS NICKEL PLATED, TAGS TIN PLATED
RATING: 10A 250V AC
CONTACT RESISTANCE: <10m OHM
INSULATION RESISTANCE: >100M OHM 500VDC MIN
DIELECTRICS STRENGTH: 2000VAC/1mA 1MIN
A.C. BREAKDOWN:
POLE-POLE: 5kV
POLES-PANEL: 4.0kV
OPERATING TEMPERATURE: -40 °C TO +70 °C
MAX. PIN TEMPERATURE: +65 °C
APPROVALS: UL,CSA, VDE
DUAL FUSEHOLDER, ONE ACTIVE, ONE SPARE
FUSES NOT INCLUDED - RECOMMENDED SIZE: 5 X 20mm
RoHS COMPLIANT
APPROVEDDATEDESCRIPTION
REV.
REVISION
B
C
RoHS Compliancy
Graphics Update
06-01-06
03-20-08
DP
DP
THESE DRAWINGS ARE THE PROPERTY OF QUALTEK
ELECTRONICS AND NOT TO BE REPRODUCED FOR
OR COMMUNICATED TO A THIRD PARTY WITHOUT
THE EXPRESS WRITTEN PERMISSION OF AN OFFICER
OF QUALTEK ELECTRONICS.
CONTROLLED
2.8X3.3L
10.0
7.0
4.8
44
36 ± 0.2
24 ±
0.5
0
7±0.1 7±0.1
33.0 ± 0.3
16 ±
0.5
0
3.2
5
13.6 10
30.8
12.5
10.4
5
26.8
PANEL CUTOUT
31.4 ±
0.5
0
Ø3.5
36
27.3 ±
0.2
0
R1
15 ±
0.5
0
1
0.5
12 ±
