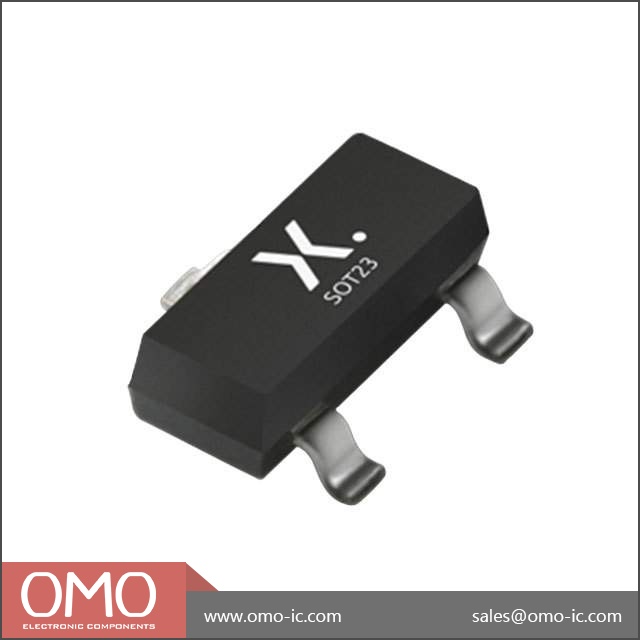

PMV250EPEAR

Mfr. #:: PMV250EPEAR
Manufacturer:: Nexperia
Description:: MOSFET P-CH 40V SOT23
Lifecycle:: New from this manufacturer.
Datasheet:: PMV250EPEAR Datasheet
Delivery:: DHL FedEx Ups TNT EMS
Payment:: T/T Paypal Visa MoneyGram Western Union
ECAD Model:

Product Attribute
Attribute Value

Manufacturer: NXP Semiconductors

Product Category: FETs - Single

Series: -

Packaging: Digi-ReelR Alternate Packaging

Unit-Weight: 0.050717 oz

Mounting-Style: SMD/SMT

Package-Case: TO-236-3, SC-59, SOT-23-3

Technology: Si

Operating-Temperature: -55°C ~ 150°C (TJ)

Mounting-Type: Surface Mount

Number-of-Channels: 1 Channel

Supplier-Device-Package: TO-236AB (SOT23)

Configuration: 1 P-Channel ESD

FET-Type: MOSFET P-Channel, Metal Oxide

Power-Max: 480mW

Drain-to-Source-Voltage-Vdss: 40V

Input-Capacitance-Ciss-Vds: 450pF @ 20V

FET-Feature: Logic Level Gate

Current-Continuous-Drain-Id-25°C: 1.5A (Ta)

Rds-On-Max-Id-Vgs: 240 mOhm @ 1.3A, 10V

Vgs-th-Max-Id: 2.5V @ 250μA

Gate-Charge-Qg-Vgs: 6nC @ 10V

Pd-Power-Dissipation: 480 mW

Maximum-Operating-Temperature: + 150 C

Minimum-Operating-Temperature: - 55 C

Fall-Time: 14 ns

Rise-Time: 6 ns

Vgs-Gate-Source-Voltage: +/- 20 V

Id-Continuous-Drain-Current: - 1.5 A

Vds-Drain-Source-Breakdown-Voltage: - 40 V

Vgs-th-Gate-Source-Threshold-Voltage: - 1 V

Rds-On-Drain-Source-Resistance: 400 mOhms

Transistor-Polarity: P-Channel

Typical-Turn-Off-Delay-Time: 26 ns

Typical-Turn-On-Delay-Time: 4 ns

Qg-Gate-Charge: 4.7 nC

Forward-Transconductance-Min: 4.5 S

Channel-Mode: Enhancement

Tags: PMV25, PMV2, PMV

Service Guarantees

We guarantee 100% customer satisfaction.

Quality Guarantees

We provide 90-360 days warranty.

If the items you received were not in perfect quality, we would be responsible for your refund or replacement, but the items must be returned in their original condition.
Our experienced sales team and tech support team back our services to satisfy all our customers.

we buy and manage excess electronic components, including excess inventory identified for disposal.
Email us if you have excess stock to sell.

Email: info@omo-ic.com

Step1:
Vacuum Packaging with PL

Step2:
Anti-Static Bag

Step3:
Packaging Boxes

PMV250EPEAR Description

***el Electronic: In a Pack of 100, P-Channel MOSFET, 1.5 A, 40 V, 3-Pin SOT-23 Nexperia PMV250EPEAR

***ure Electronics: PMV250EPEAR Series 40 V 240 mOhm 480 mW 6 nC P-Channel TrenchMOS FET - SOT-23

***et Europe: Small Signal low RDSon automotive Trans MOSFET P-CH 40V 1.5A 3-Pin TO-236AB T/R

Market price

Part #	Mfg.	Description	Stock	Price
PMV250EPEAR DISTI # V72:2272_06540559	Nexperia	Trans MOSFET P-CH 40V 1.5A 3-Pin TO-236AB T/R RoHS: Compliant	2860	6000:$0.0667 3000:$0.0741 1000:$0.0864 500:$0.0916 250:$0.1017 100:$0.1131 25:$0.2206 10:$0.2451 1:$0.3515
PMV250EPEAR DISTI # 1727-2303-1-ND	Nexperia	MOSFET P-CH 40V SOT23 RoHS: Compliant Min Qty: 1 Container: Cut Tape (CT)	1488In Stock	1000:$0.1148 500:$0.1458 100:$0.2386 10:$0.3570 1:$0.5000
PMV250EPEAR DISTI # 1727-2303-6-ND	Nexperia	MOSFET P-CH 40V SOT23 RoHS: Compliant Min Qty: 1 Container: Digi-Reel®	1488In Stock	1000:$0.1148 500:$0.1458 100:$0.2386 10:$0.3570 1:$0.5000
PMV250EPEAR DISTI # 1727-2303-2-ND	Nexperia	MOSFET P-CH 40V SOT23 RoHS: Compliant Min Qty: 3000 Container: Tape & Reel (TR)	On Order	3000:$0.1015
PMV250EPEAR DISTI # C1S537101329564	Nexperia	MOSFETs RoHS: Compliant	25	25:$0.2190
PMV250EPEAR DISTI # C1S537101333381	Nexperia	MOSFETs RoHS: Compliant	6860	250:$0.1017 100:$0.1131 25:$0.2206
PMV250EPEAR DISTI # 27512969	Nexperia	Trans MOSFET P-CH 40V 1.5A 3-Pin TO-236AB T/R RoHS: Compliant	2860	6000:$0.0667 3000:$0.0741 1000:$0.0864 500:$0.0916 250:$0.1017 110:$0.1131
PMV250EPEAR DISTI # PMV250EPEAR	Nexperia	Trans MOSFET P-CH 40V 1.5A 3-Pin TO-236AB T/R (Alt: PMV250EPEAR) RoHS: Compliant Min Qty: 15000 Container: Tape and Reel	Asia - 15000
PMV250EPEAR DISTI # PMV250EPEAR	Nexperia	Trans MOSFET P-CH 40V 1.5A 3-Pin TO-236AB T/R - Tape and Reel (Alt: PMV250EPEAR) RoHS: Compliant Min Qty: 12000 Container: Reel	Americas - 0	12000:$0.0589 18000:$0.0589 30000:$0.0569 60000:$0.0559 120000:$0.0539
PMV250EPEAR DISTI # 771-PMV250EPEAR	Nexperia	MOSFET 40V P-channel Trench MOSFET RoHS: Compliant	291878	1:$0.3700 10:$0.2580 100:$0.1190 1000:$0.0910 3000:$0.0780 9000:$0.0710 24000:$0.0660 45000:$0.0600 99000:$0.0570
PMV250EPEAR DISTI # 1364864	Nexperia	MOSFET P-CH 1.5A 40V AEC-Q101 SOT23-3, PK	400	100:£0.0960 600:£0.0780 1500:£0.0680

Related products

Image	Part #	Description
	Mfr.#: PMV250EPEAR OMO.#: OMO-PMV250EPEAR	MOSFET 40V P-channel Trench MOSFET
	Mfr.#: PMV25ENEAR OMO.#: OMO-PMV25ENEAR	MOSFET PMV25ENEA/TO-236AB/REEL 7" Q3/
	Mfr.#: PMV250EPEA OMO.#: OMO-PMV250EPEA-1190	MOSFET Transistor, P Channel, -1.5 A, -40 V, 0.18 ohm, -10 V, -1.7 V , RoHS Compliant: Yes
	Mfr.#: PMV250EPEAR OMO.#: OMO-PMV250EPEAR-NEXPERIA	MOSFET P-CH 40V SOT23
	Mfr.#: PMV25ENEAR OMO.#: OMO-PMV25ENEAR-NEXPERIA	MOSFET N-CH 30V TO-236AB

Availability

Stock:: Available
On Order:: 1500
Enter Quantity:

Current price of PMV250EPEAR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@omo-ic.com

Reference price (USD)

Quantity
Unit Price
Ext. Price

1: ~~$0.08~~; ~~$0.08~~

10: ~~$0.08~~; ~~$0.77~~

100: ~~$0.07~~; ~~$7.28~~

500: ~~$0.07~~; ~~$34.35~~

1000: ~~$0.06~~; ~~$64.70~~

Due to semiconductor in short supply from 2021,below price is the Normal price before 2021.please send inquire to confirm.
