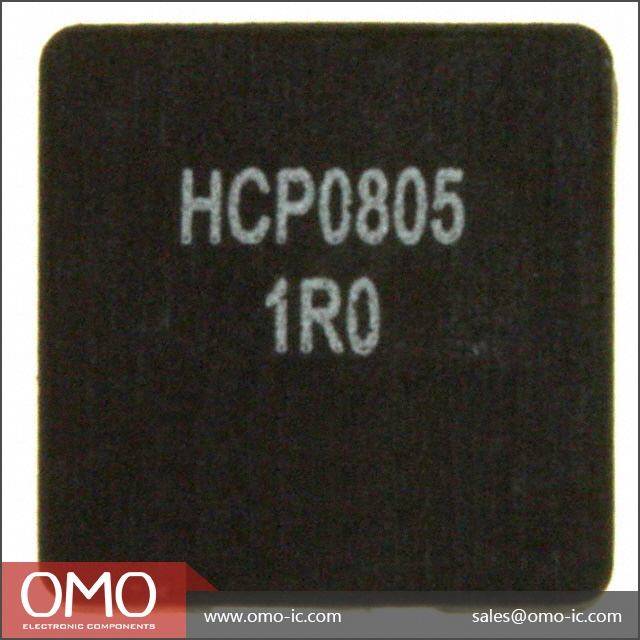

HCP0805-1R0-R

Mfr. #:: HCP0805-1R0-R
Manufacturer:: Eaton - Electronics Division
Description:: Fixed Inductors 1.0uH 22A
Lifecycle:: New from this manufacturer.
Datasheet:: HCP0805-1R0-R Datasheet
Delivery:: DHL FedEx Ups TNT EMS
Payment:: T/T Paypal Visa MoneyGram Western Union
ECAD Model:

Product Attribute
Attribute Value

Manufacturer: Eaton

Product Category: Fixed Inductors

Series: HCP0805

Product: Power Inductors

Type: Wirewound

Packaging: Digi-ReelR Alternate Packaging

Unit-Weight: 0.016000 oz

Current-Rating: 14.5A

Termination-Style: SMD/SMT

Operating-Temperature-Range: - 40 C to + 125 C

Height: 5 mm

Length: 7.7 mm

Width: 7.4 mm

Package-Case: Nonstandard

Operating-Temperature: -40°C ~ 125°C

Mounting-Type: Surface Mount

Size-Dimension: 0.303" L x 0.291" W (7.70mm x 7.40mm)

Tolerance: ±20%

Height-Seated-Max: 0.197" (5.00mm)

Ratings: -

Shielding: Shielded

Test-Frequency: 100 kHz

Inductance: 1μH

DC-Resistance-DCR: 5.8 mOhm

Material-Core: Powdered Iron

Current-Saturation: 22A

Q-Freq: -

Frequency-Self-Resonant: -

Frequency-Test: 100kHz

Maximum-DC-Current: 22 A

Maximum-DC-Resistance: 5.8 mOhms

Core-Material: Powdered Iron

Tags: HCP08, HCP0, HCP

Service Guarantees

We guarantee 100% customer satisfaction.

Quality Guarantees

We provide 90-360 days warranty.

If the items you received were not in perfect quality, we would be responsible for your refund or replacement, but the items must be returned in their original condition.
Our experienced sales team and tech support team back our services to satisfy all our customers.

we buy and manage excess electronic components, including excess inventory identified for disposal.
Email us if you have excess stock to sell.

Email: info@omo-ic.com

Step1:
Vacuum Packaging with PL

Step2:
Anti-Static Bag

Step3:
Packaging Boxes

Market price

Part #	Mfg.	Description	Stock	Price
HCP0805-1R0-R DISTI # V72:2272_15901185	Eaton Corporation	Inductor Power Shielded Wirewound 1uH/0.64uH 20% 100KHz Powdered Iron 14.5A 5.8mOhm DCR T/R RoHS: Compliant	680	250:$1.9117 500:$1.9117 100:$1.9507 25:$1.9705 10:$1.9782 1:$2.3180
HCP0805-1R0-R DISTI # 513-1646-1-ND	Eaton Bussmann	FIXED IND 1UH 14.5A 5.8 MOHM SMD RoHS: Compliant Min Qty: 1 Container: Cut Tape (CT)	522In Stock	100:$2.0262 10:$2.8950 1:$3.1400
HCP0805-1R0-R DISTI # 513-1646-6-ND	Eaton Bussmann	FIXED IND 1UH 14.5A 5.8 MOHM SMD RoHS: Compliant Min Qty: 1 Container: Digi-Reel®	522In Stock	100:$2.0262 10:$2.8950 1:$3.1400
HCP0805-1R0-R DISTI # 513-1646-2-ND	Eaton Bussmann	FIXED IND 1UH 14.5A 5.8 MOHM SMD RoHS: Compliant Min Qty: 700 Container: Tape & Reel (TR)	Temporarily Out of Stock	7000:$1.2166 3500:$1.2585 1400:$1.3005 700:$1.4263
HCP0805-1R0-R DISTI # 30297108	Eaton Corporation	Inductor Power Shielded Wirewound 1uH/0.64uH 20% 100KHz Powdered Iron 14.5A 5.8mOhm DCR T/R RoHS: Compliant	680	500:$1.9507 250:$1.9705 100:$1.9782 25:$2.3180 10:$2.3195 6:$3.0074
HCP0805-1R0-R DISTI # HCP0805-1R0-R	Eaton Corporation	Ind High Current Power Shielded Wirewound 1uH 20% 100KHz Powdered Iron 14.5A T/R (Alt: HCP0805-1R0-R) RoHS: Compliant Min Qty: 700 Container: Tape and Reel	Asia - 3500	700:$1.2870 1400:$1.1583 2100:$1.0530 3500:$0.9653 7000:$0.9193 17500:$0.8910 35000:$0.8644
HCP0805-1R0-R DISTI # HCP0805-1R0-R	Eaton Corporation	Ind High Current Power Shielded Wirewound 1uH 20% 100KHz Powdered Iron 14.5A T/R - Tape and Reel (Alt: HCP0805-1R0-R) RoHS: Compliant Min Qty: 700 Container: Reel	Americas - 0	700:$1.1979 1400:$1.1569 2800:$1.1179 4200:$1.0819 7000:$1.0659
HCP0805-1R0-R DISTI # HCP0805-1R0-R	Eaton Corporation	Ind High Current Power Shielded Wirewound 1uH 20% 100KHz Powdered Iron 14.5A T/R (Alt: HCP0805-1R0-R) RoHS: Compliant Min Qty: 700 Container: Tape and Reel	Europe - 0	700:€1.7900 1400:€1.5900 2800:€1.4900 4200:€1.3900 7000:€1.2900
HCP0805-1R0-R DISTI # 70426619	Eaton Bussmann	Inductor HighCurrent 1.0uH 22A SMD RoHS: Compliant	0	700:$2.2400
HCP0805-1R0-R DISTI # 704-HCP0805-1R0-R	Eaton Corporation	Fixed Inductors 1.0uH 22A RoHS: Compliant	364	1:$3.1500 10:$2.3900 100:$2.1800 700:$1.4300 1400:$1.3000 2100:$1.2600 4900:$1.2200
HCP0805-1R0-R DISTI # 000000000003492718	Eaton Bussmann	Inductor Power Shielded Wirewound 1uH/0.64uH 20% 100KHz Powdered Iron 14.5A 5.8mOhm DCR T/R	0	700:$1.1200 1400:$1.0800 2100:$1.0500
HCP0805-1R0-R	Eaton Corporation	Fixed Inductors 1.0uH 22A RoHS: Compliant	Americas -

Related products

Image	Part #	Description
	Mfr.#: HCP0805-1R5-R OMO.#: OMO-HCP0805-1R5-R	Fixed Inductors 1.5uH 18A
	Mfr.#: HCP0805-R40-R OMO.#: OMO-HCP0805-R40-R	Fixed Inductors 0.4uH 32A
	Mfr.#: HCP0805-2R2-R OMO.#: OMO-HCP0805-2R2-R	Fixed Inductors 2.2uH 14A
	Mfr.#: HCP0805-1R5-R OMO.#: OMO-HCP0805-1R5-R-EATON	Fixed Inductors 1.5uH 18A
	Mfr.#: HCP0805-2R2-R OMO.#: OMO-HCP0805-2R2-R-EATON	Fixed Inductors 2.2uH 14A
	Mfr.#: HCP0805-R68-R OMO.#: OMO-HCP0805-R68-R-EATON	Fixed Inductors 0.68uH 25A
	Mfr.#: HCP0805-1R0-R OMO.#: OMO-HCP0805-1R0-R-EATON	Fixed Inductors 1.0uH 22A
	Mfr.#: HCP0805-R40-R OMO.#: OMO-HCP0805-R40-R-EATON	Fixed Inductors 0.4uH 32A

Availability

Stock:: Available
On Order:: 3000
Enter Quantity:

Current price of HCP0805-1R0-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@omo-ic.com

Reference price (USD)

Quantity
Unit Price
Ext. Price

1: ~~$1.30~~; ~~$1.30~~

10: ~~$1.23~~; ~~$12.32~~

100: ~~$1.17~~; ~~$116.69~~

500: ~~$1.10~~; ~~$551.05~~

1000: ~~$1.04~~; ~~$1 037.30~~

Due to semiconductor in short supply from 2021,below price is the Normal price before 2021.please send inquire to confirm.
